Demon 02141246 AxisRef : DEMN00068A / 02141246

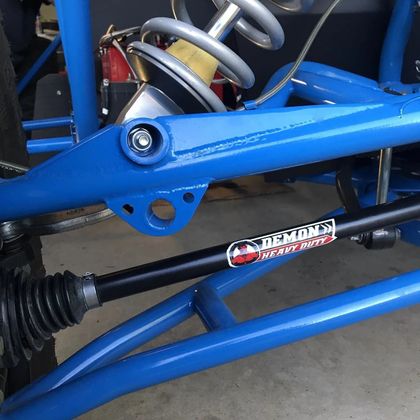

DEMON PAXL-1104HD — Complete reinforced axle shaft for quads, designed for demanding quads and setups with lifts. A robust part offering high-quality material composition to limit wear during utility or off-road journeys.

• Design: wide articulation angles and a double sliding system that reduce the risk of axle locking.
• Increased dimensions: size of the constant velocity joint increased by 10–15% and upper shaft diameter by 15–20% compared to standard axles.

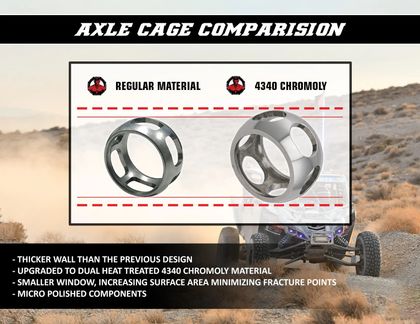

• Materials: high-strength chromoly steel shafts with double heat treatment; internal cage made of chromoly 4340; precision CNC machining.
• Sealing and lubrication: thermoplastic polyester elastomer (TPEE) boots filled with high-load molybdenum grease for long-lasting protection against contamination and load.
• Compatibilities: compatible with 2", 3", 4", and 5" lifts, as well as certain portal transmission lifts and A-arms depending on brands.

Designed for quad applications where mechanical reliability is paramount, this PAXL-1104HD half-shaft is aimed at riders and preparers who reinforce their running gear. Regular checks should include the condition of the bellows and grease level to maintain performance and lifespan. Top observed compatibilities: YAMAHA YFM 700 Kodiak (2020–2021).
