Demon 02141257 AxisRef : DEMN00069A / 02141257
- Description
- Compatible motorbikes
- Questions and answers
DescriptionDemon 02141257 Axis
'%3e%3cpath%20fill='%23f1ab00'%20d='M.702%207.162l1.875%201.684%206.161-5.532L14.9%208.846l1.875-1.684L8.738-.053z'/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
Product details :
Features

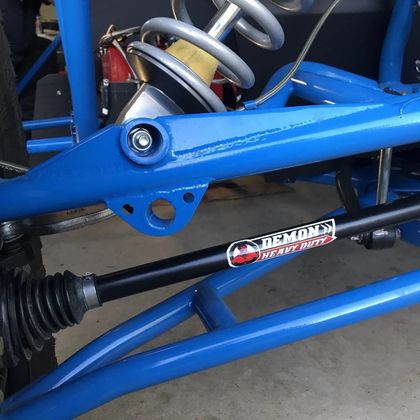

DEMON PAXL-1128HD — complete reinforced axle for quad, designed for riders who do not compromise on robustness. This wheel shaft meets industrial standards (chromoly steel, double heat treatment) and reinforced components to better withstand the stresses of off-road conditions: crossing, mud, and rocks are no longer unknowns.
- Design: wide articulation angles and a double sliding system that reduces the risk of axle blockage.

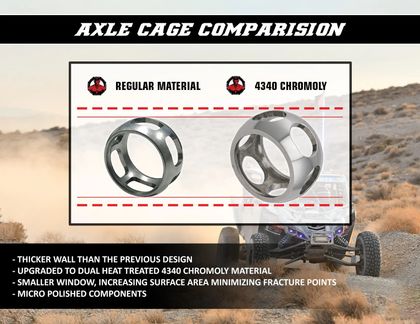

- Reinforced components: high-strength chromoly shafts, internal cage made of 4340 chromoly, and precision CNC machining.
- Seals and protections: increased size of the homokinetic joint by 10 to 15% and boots made of thermoplastic polyester elastomer (TPEE).
- Maintenance and lubrication: bellows filled with high-load molybdenum grease for long-lasting lubrication in severe conditions.
- Template: upper diameter increased by 15 to 20% compared to original axles, designed to enhance torque transmission.
Compatible with 2", 3", 4", and 5" lifts, as well as certain portal transmission lifts and A-arms (check references before installation). Ideal for CAN AM quads such as the Renegade 800 and Outlander 400 from the specified years.
Manufacturer's ref: PAXL-1128HD — Brand: DEMON — Category: WHEEL AXLES + PARTS.
Technical information :
Reference
DEMN00069A / 02141257
Type
Cross
Compatible motorbikes
CAN AM (BRP)57 compatible models
OUTLANDER 400 EFI 4X4 XT - 2009/2010Front LeftOUTLANDER 400 HO 4X4 XT - 2006/2008Front LeftOUTLANDER 400 EFI HO 4X4 - 2008/2008Front LeftOUTLANDER 400 EFI HO 4X4 Max - 2008/2008Front LeftOUTLANDER 400 EFI 4X4 - 2009/2014Front LeftOUTLANDER 400 EFI 4X4 Max XT - 2009/2014Front LeftOUTLANDER 400 EFI HO 4X4 Max XT - 2008/2008Front LeftOUTLANDER 400 EFI HO 4X4 XT - 2008/2008Front LeftOUTLANDER 400 HO 4X4 Max XT - 2006/2008Front LeftOUTLANDER 400 HO 4X4 - 2006/2008Front LeftOUTLANDER 400 EFI 4X4 Max - 2009/2014Front LeftOUTLANDER 400 HO 4X4 Max - 2006/2008Front LeftRENEGADE 500 EFI HO 4X4 - 2008/2008Front LeftOUTLANDER 500 EFI HO 4X4 XT - 2007/2008Front LeftOUTLANDER 500 EFI 4X4 Max XT - 2009/2012Front LeftOUTLANDER 500 EFI 4X4 Max - 2009/2011Front LeftRENEGADE 500 EFI 4X4 - 2009/2012Front LeftOUTLANDER 500 EFI 4X4 XT-P - 2010/2010Front LeftOUTLANDER 500 EFI HO 4X4 - 2007/2008Front LeftOUTLANDER 500 EFI HO 4X4 Max - 2007/2008Front LeftOUTLANDER 500 EFI 4X4 Max XT-P - 2010/2010Front LeftOUTLANDER 500 EFI 4X4 XT - 2009/2012Front LeftOUTLANDER 500 EFI 4X4 - 2009/2012Front LeftOUTLANDER 500 EFI HO 4X4 Max XT - 2007/2008Front LeftOUTLANDER 650 EFI HO 4X4 XT - 2006/2008Front LeftOUTLANDER 650 R EFI 4X4 XT - 2009/2010Front LeftOUTLANDER 650 R EFI 4X4 Max - 2010/2010Front LeftOUTLANDER 650 EFI 4X4 Max XT-P - 2012/2012Front LeftOUTLANDER 650 EFI 4X4 Max - 2011/2011Front LeftOUTLANDER 650 EFI 4X4 Max XT - 2011/2012Front LeftOUTLANDER 650 EFI 4X4 - 2011/2011Front LeftOUTLANDER 650 EFI HO 4X4 Max - 2006/2008Front LeftOUTLANDER 650 EFI HO 4X4 - 2006/2008Front LeftOUTLANDER 650 R EFI 4X4 Max XT - 2009/2009Front LeftOUTLANDER 650 EFI HO 4X4 Max XT - 2006/2008Front LeftOUTLANDER 650 EFI 4X4 XT - 2011/2012Front LeftRENEGADE 800 R EFI 4X4 X XC DPS - 2015/2015Front LeftOUTLANDER 800 R EFI 4X4 XT - 2009/2009 - 2012/2012Front LeftOUTLANDER 800 R EFI 4X4 Max XT-P - 2011/2012Front LeftOUTLANDER 800 EFI HO 4X4 Max LTD - 2007/2008Front LeftOUTLANDER 800 EFI HO 4X4 Max - 2006/2008Front LeftRENEGADE 800 EFI HO 4X4 X - 2008/2008Front LeftOUTLANDER 800 R EFI 4X4 Max - 2009/2011Front LeftRENEGADE 800 R EFI 4X4 X XC - 2009/2011Front LeftRENEGADE 800 R EFI 4X4 - 2009/2014Front LeftOUTLANDER 800 R EFI 4X4 Max XT - 2009/2009 - 2011/2012Front LeftOUTLANDER 800 R EFI 4X4 XT-P - 2011/2011Front LeftRENEGADE 800 EFI HO 4X4 - 2007/2008Front LeftOUTLANDER 800 R EFI 4X4 Max LTD - 2009/2012Front LeftOUTLANDER 800 EFI HO 4X4 - 2006/2008Front LeftOUTLANDER 800 R EFI 4X4 X MR - 2011/2012Front LeftOUTLANDER 800 EFI HO 4X4 XT - 2006/2008Front LeftOUTLANDER 800 EFI HO 4X4 Max XT - 2006/2008Front LeftOUTLANDER 800 R EFI 4X4 X XC - 2011/2011Front LeftOUTLANDER 800 R EFI 4X4 - 2010/2011Front LeftOUTLANDER 1000 EFI 4X4 XT - 2012/2012Front LeftRENEGADE 1000 EFI 4X4 X XC - 2012/2012Front Left
