Keihin PWK38 Quad Universal CarburettorRef : IH00086A / 1106128

KEIHIN PWK38 Air Striker/Quad Vent Carburettor — Manufacturer reference: 1000-S66-A00

Designed by KEIHIN, this PWK38 in the Air Striker/Quad Vent version is aimed at motorcyclists and tuners looking for a PWK-type carburettor suitable for off-road applications and quad installations. It incorporates the principles of slide/diaphragm carburettors and allows for fuel supply adjustments via traditional settings (jets, mixture screws, slide position).

• Brand: KEIHIN
• Model: PWK38 — Air Striker/Quad Vent version
• Category: Carburettor
• GP: KEA170
• Idle jet: KEP55
• Needle: 48-DDJ
• Slide size: 7.0

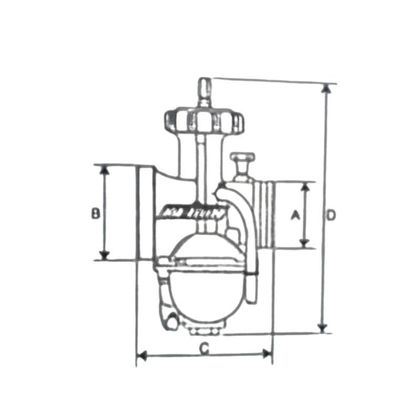

Dimensions :

• A: 46 mm
• B: 63 mm
• C: 91 mm
• D: 172 mm
• The PWK Quad Vent 35, 36, and 38 are equipped with a system that eliminates pressure differences in the float chamber during repeated jumps.

This carburettor is suitable for replacements or tuning projects: check compatibility with your engine, connection diameter, and necessary accessories (clamps, intake manifolds, gaskets). Proper adjustment is crucial: jet adaptation according to altitude, fuel, and exhaust, and checking the tightness of hoses. Fine tuning ensures a consistent throttle response and controlled fuelling.

Practical advice: entrust the installation and tuning to a workshop if you are not equipped, plan for road or dyno testing and adjustments, and check the availability of Keihin spare parts for regular maintenance.
