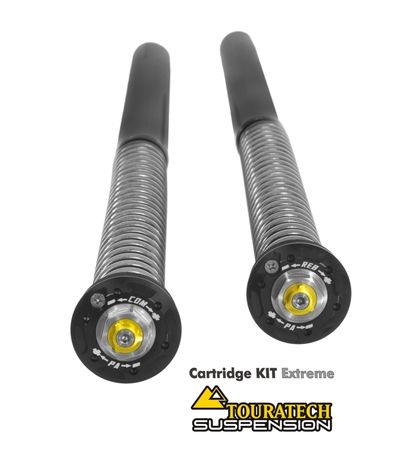

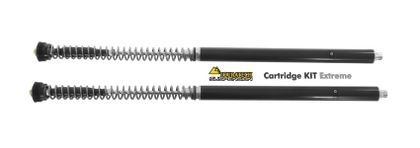

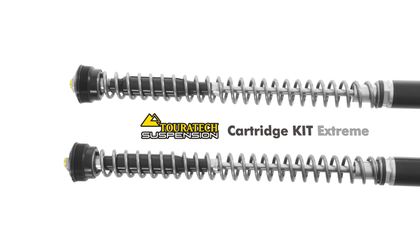

Touratech Cartridge Extreme - Yellow Cartridges kitTRIUMPH 1200 TIGER 1200 EXPLORER ABS - 2012 - 2015Ref : TRT01181A / 01-422-5840-0

Cartridge Extreme - Yellow by Touratech: a closed suspension cartridge designed to replace the shock absorber part of the original fork without modifying the steering stem, handlebars, brakes, or the geometry of the front end. Ideal for raids, loaded trips, and demanding roads, it provides fine management of riding behaviour thanks to a separate oil cartridge and nitrogen filling.

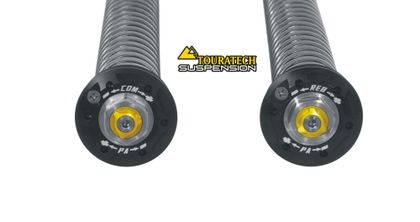

The Cartridge Extreme fits into the original fork legs and maintains the lubrication of the fork in its usual oil while damping occurs in the closed cartridge. Adjustments are accessible from the top to adapt preload, rebound, and pressure level according to load, riding duo, or your riding style.

• Colour: Yellow
• Function: Riding behaviour — precise adjustments (preload 20 mm over 12 clicks)
• Adjustments: rebound 20 clicks, pressure level 20 clicks
• Construction: piston ø35 mm, closed cartridge oil + nitrogen, integrated Hydraulic Endstop

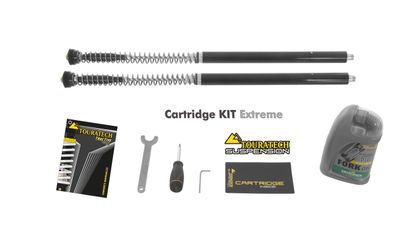

• Mounting: front, ready to install with pre-mounted spring; supplied with tool, 1L of oil, and instructions
• Approval: ABE: No

Designed for those who load their motorcycle and seek a more stable and reproducible fork on varied terrains. Example of application: Triumph Tiger Explorer (2012-2015).
