Show Chrome Fuse box Electronic fuse door blockRef : SHCH00087A / 21300290

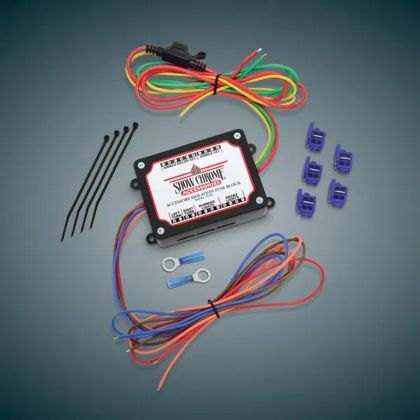

SHOW CHROME Electronic Fuse Block (manufacturer part no. 13-311): a compact unit designed to simplify wiring and power supply for accessories on touring bikes, roadsters, and vintage/classic motorcycles. Designed to attach directly to the battery, it centralises connections and protects accessory circuits without multiplying direct links to the main harness.

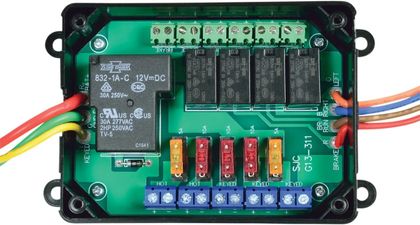

• Eleven connection points protected by a set of nine relays and fuses to isolate additional components.

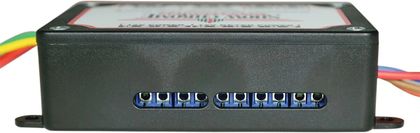

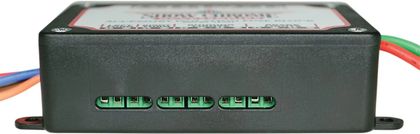

• Compact housing (1 1/8’’ x 2 ¾’’ x 3 ¾’’) easy to integrate into a battery compartment or under the seat.
• Main network isolation system via a main fuse and a dedicated relay, to limit interactions between accessories and original electronics.
• 3 key-switched outputs and 2 permanent outputs (protected by 5 A and 10 A fuses) to meet various needs: additional headlights, USB sockets, alarms, etc.
• Separate terminals for left/right indicators, two blocks for position lights and two for stop lights, controlled by four automatic relays (8 A, 277 V) for independent circuit management.

Universal product suitable for adding electrical equipment to modern motorcycles with electronic management. Ideal for those seeking a clean, secure, and modular installation without running multiple lines to the battery.

Specifications: Type: electronic • Voltage: 12 V • Amperes: 2.1 A • Unit: each • Brand: SHOW CHROME.
