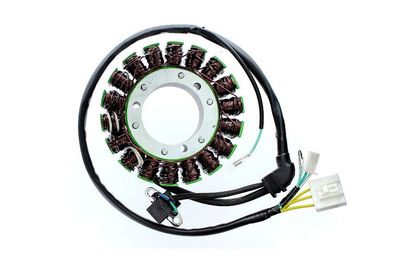

Electrosport ESG 168 Ignition statorHONDA 1300 VTX 1300 S (SC52) - 2004 - 2007Ref : ELS00258A / 1140056

Stator ELECTROSPORT - Manufacturer Ref: ESG168

This replacement part designed for roadsters allows you to restore the charging circuit of your VTX without breaking the bank. Designed as an alternative to the original part, it retains the essential dimensions for direct installation on Honda VTX 1300R, 1300S, and 1300C models (2003-2009). Ideal for repairing a damaged winding or a faulty alternator, it integrates with the existing wiring harness and works with the original regulator.

• Brand: ELECTROSPORT
• Reference: ESG168
• Voltage: 12V
• Compatibility: HONDA VTX 1300R / 1300S / 1300C (2003-2009). Suitable for VTX 1300 S (SC52) 2004, 2006, 2007.

Dimensions (measurements provided):
A: Outer diameter 126.4 mm
B: Inner diameter 53.8 mm
C: Core thickness 33.4 mm
D: Winding thickness 41 mm

Delivered: 1 piece

ElectroSport has been manufacturing electrical components for motorcycles since the late 1990s; this stator is an economical and quality solution for replacing defective windings. Note: Technically modified stators are excluded from exchange.
