SW-MOTECH PRO - Black Luggage rackRef : SWM00759A / KFT.04.521.30001/B

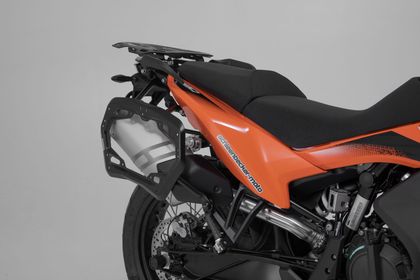

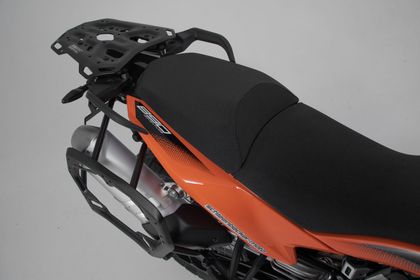

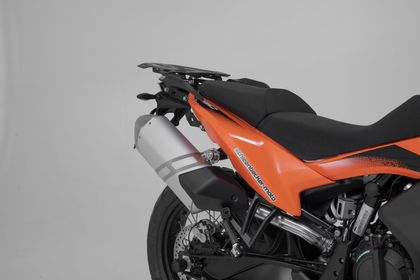

PRO Side Case Support by SW-MOTECH

The PRO side case support is designed to securely attach cases to the rear of your motorcycle. Made from 2.5 mm steel with an epoxy finish, it offers mechanical strength and protection against corrosion. Its vehicle-adapted design features a width of 550 mm without cases, ensuring a compact profile and secure luggage retention.

Design and Materials

• 2.5 mm thick steel for a robust structure that ensures case stability during both on-road and off-road use
• Epoxy finish providing effective corrosion protection to withstand outdoor conditions
• Structure width of 550 mm without cases to limit lateral bulk and facilitate low-speed manoeuvres

Practicality and Features

• QUICK-LOCK rapid locking system for easy and quick removal with a quarter turn using a flat screwdriver or multitool
• Numerous functional drilling holes allowing for the addition of accessories or plates as per your needs
• Simple mounting to original anchor points for direct installation on the motorcycle
• Secure attachment for TRAX, DUSC, AERO, and SysBag WP L bags with an adapter plate to ensure compatibility with luggage solutions
• Separate adapter kits are essential for SW-MOTECH aluminium cases and those from other manufacturers, as well as for AERO ABS cases and SysBag bags (SysBag 15, 30, WP L) with an adapter plate

Advantages

• Includes 2 x PRO side supports, installation manual, and mounting hardware to prepare for installation upon receipt
• Total weight approx. 5.8 kg to assess the impact on load and handling during installation
• Option for permanent mounting with standard M8 screws and an M8 screw kit available separately for a fixed attachment

Examples of Compatible Motorcycles

• KTM 890 SM T 890 (2026)
• KTM 890 Adventure R 890 (2026)
• KTM 890 Adventure 890 (2026)

Complete list of compatible motorcycles available in the dedicated section below
