SW-MOTECH PRO - Black Luggage rackRef : SWM00822A / KFT.07.949.30100/B

PRO Side Case Support by SW-MOTECH

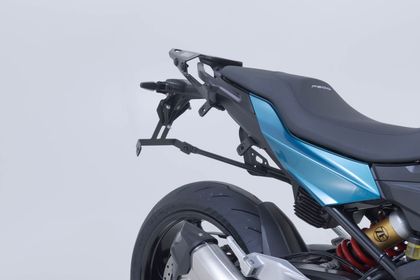

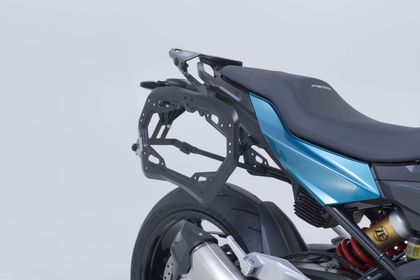

PRO side case support designed for optimal positioning close to the motorcycle. Made from 2.5 mm steel for secure lateral load support and finished with a black powder coating to resist corrosion. Removable QUICK-LOCK system for quickly detaching the support without leaving visible elements on the motorcycle.

Design and Materials

• 2.5 mm thick steel structure ensuring adequate mechanical strength for holding the cases
• Black powder-coated finish to limit corrosion and maintain aesthetic appeal
• Mounting width without case of 495 mm to anticipate the required space during installation

Practicality and Features

• Fully removable QUICK-LOCK system for quickly detaching the support as needed
• Quarter-turn unlocking with a flat screwdriver or multitool for easy handling in off-road use
• Numerous functional drilling holes for attaching additional accessories and adapting the installation
• Mounting on original anchor points for coherent assembly and simplified installation
• Secure attachment for TRAX, DUSC, AERO, and SysBag WP L bags via an adapter plate to ensure compatibility with these systems

Advantages

• 2 x PRO side supports included
• Total weight of approximately 4.8 kg to assess the load to be handled during installation
• Separate adaptation kits are essential for SW-MOTECH aluminium cases, for other manufacturers, for AERO ABS cases, and for certain SysBag bags with adapter plate
• For a permanent installation, the quick lock can be replaced with standard M8 screws, and an M8 screw kit is available separately

Examples of Compatible Motorcycles

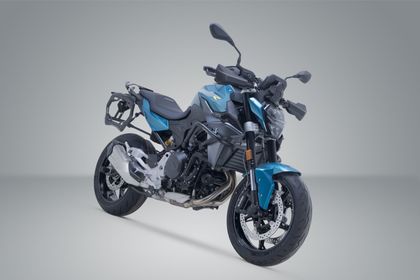

• BMW F 900 XR 900 (2026)
• BMW F 900 R 900 (2026)

Complete list of compatible motorcycles available in the dedicated section below
