SW-MOTECH PRO - Black Luggage rackRef : SWM00830A / KFT.07.954.30001/B

PRO Side Case Support by SW-MOTECH

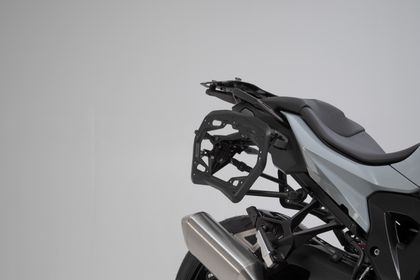

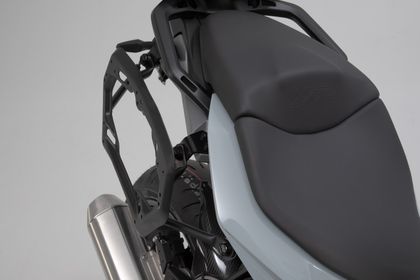

The PRO side case support is designed for side cases and specifically adapted for the rear of the BMW S 1000 XR. Constructed from 2.5 mm steel with an epoxy finish to resist corrosion and ensure secure luggage retention. Removable QUICK-LOCK system for easy removal of the support and to limit visual impact on the motorcycle.

Design and Materials

• 2.5 mm thick steel providing a robust structure to hold side cases
• Epoxy finish ensuring corrosion protection for extended lifespan
• Mounting width of 45.0 cm allowing for close positioning to the motorcycle and discreet integration
• Total weight of approximately 3.2 kg facilitating handling during installation and removal

Practicality and Features

• QUICK-LOCK quick-release system for fast removal of the support with minimal visible mounting elements on the motorcycle
• Simple mounting to original anchor points for easier installation
• Numerous functional drilling holes for attaching additional accessories as needed
• Compatible with TRAX, DUSC, AERO, and SysBag WP L bags via adapter plate to secure these solutions

Benefits

• Sold in pairs: 2 x PRO side case supports
• Installation instructions and mounting hardware included to kickstart the installation
• Adapter kits sold separately essential for SW-MOTECH aluminium cases, AERO ABS cases, and SysBag bags with adapter plate
• Optional anti-theft kit available to secure the support on the motorcycle
• Permanent mounting possible with standard M8 screws and M8 screw kit available separately

Examples of Compatible Motorcycles

• BMW S 1000 XR (SX99 (K69)) 1000 cm3 (2026)
• BMW S 1000 XR (2X99 (K69)) 1000 cm3 (2023)

Complete list of compatible motorcycles available in the dedicated section below
