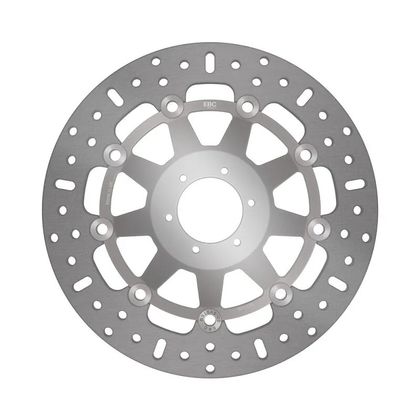

EBC Brake Disc - Manufacturer Ref. MD1139
Floating disc designed for the road, from EBC's BRAKE ROTORS - STREET range. The stainless steel disc is paired with an aluminium central hub, assembled via EBC's unique square drive button system, the SD System. This floating architecture allows for slight axial movement between the disc and the hub, limiting thermal and mechanical stresses during intensive use.
- Outer diameter: 296 mm
- Drilling circle: 74.0 mm
- Bolt pattern: 6 holes
- Materials: stainless steel disc / aluminium hub
- Colour/finish: silver - stainless steel
- Compatibility: suitable for roadsters (see models below)
EBC front discs can be fitted with 5 or 9 buttons, while the rear can accommodate up to 12 buttons for suitable handling under high demands. To maintain efficiency and avoid the risk of hot spots or glazing, always replace the pads with new ones when fitting a new disc.
Top compatible models:
- HONDA CB 600 F Hornet (PC36) (2006 - 600 cc)
- HONDA CB 600 S F2 Hornet S (PC36) (2003 - 600 cc)
- HONDA CB 600 S F2 Hornet S (PC34) (2001 - 600 cc)
