EBC Scooter Series Round brake discRef : FA00435A / 17100723
Recommended retail price:120,85 €?
Check compatibility
Add to basket 96,56 €
- Description
- Compatible motorbikes
- Questions and answers

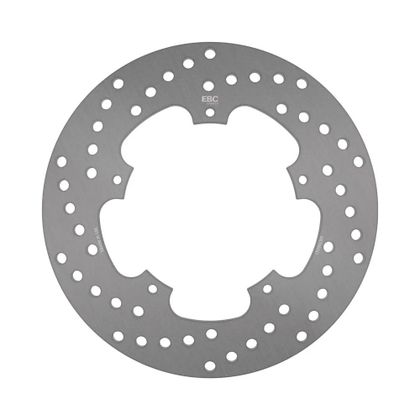

DescriptionEBC Scooter Series Round brake disc
'%3e%3cpath%20fill='%23f1ab00'%20d='M.702%207.162l1.875%201.684%206.161-5.532L14.9%208.846l1.875-1.684L8.738-.053z'/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
Product details :
Features
Manufacturer reference: MD960D — EBC Scooter Series Brake Disc. Designed for urban riding, this round disc is aimed at scooter riders looking for a reliable and ready-to-fit replacement. Assembled and delivered complete, it directly replaces the OEM disc for a straightforward and hassle-free restoration.
- Material: billet steel, durable and friction-resistant
- Outer diameter: 240 mm
- Inner diameter: 125.2 mm
- Drilling circle: 140.0 mm
- Thickness: 5.2 mm
- Colour / Finish: silver / stainless steel / zinc
- Shape: round
- Sale: sold individually — delivered assembled, ready for installation
Designed for the urban environment (stop & go, heavy traffic), this EBC disc features a classic geometry compatible with many modern scooters. It pairs particularly well with machines like the PIAGGIO MP3 350 HPE, the GILERA FUOCO 500, and the APRILIA SR MAX 300, while remaining a solid option for other models sharing the specified dimensions. Simple installation, easy maintenance — ideal for the DIY enthusiast who wants to achieve consistent braking and a robust part on their everyday machine.
Technical information :
Reference
FA00435A / 17100723
Type
Monobloc (Fixed)
Units
Per unit
Product name
Brake disc
Shape
Round
Braking surface
Perforated
Inside diameter
125.2 mm
Thickness
5.2 mm
Model
Scooter Series
Drilling circle
140.0 mm
Bolting pattern
5 holes
Colour/Finish
Silver|Stainless Steel|Zinc
Material
Stainless steel
Outside diameter
240 mm
Compatible motorbikes
PIAGGIO47 compatible models
X8 125 STREET E2 (M491) - 2006/2007Rear RightMP3 125 IBRIDO (M651) - 2010/2010Rear RightX8 125 PREMIUM E2 (M363) - 2006/2006Rear RightX8 125 PREMIUM E3 (M366) - 2007/2007Rear RightX7 125 E3 (M621) - 2008/2008Rear RightX7 125 IE E3 (M621) - 2009/2009Rear RightMP3 125 IE (M631) - 2008/2009Rear RightX EVO 125 E3 (M366) - 2007/2012Rear RightMP3 125 (M473) - 2007/2008Rear RightX8 125 (M363) - 2004/2007Rear RightX8 200 (M362) - 2004/2005Rear RightMP3 250 (M472) - 2007/2008Rear RightX7 250 - 2008/2008Rear RightX7 250 IE E3 (M622) - 2009/2009Rear RightX8 250 IE (M364) - 2006/2007Rear RightX EVO 250 E3 (M364) - 2007/2009Rear RightMP3 250 IE LT (M641) - 2008/2009Rear RightMP3 300 LT YOURBAN ERL (TA01) - 2017/2017Rear RightMP3 300 IE LT BUSINESS ABS ASR E4 - 2016/2018Rear RightMP3 300 IE LT TOURING (M641) - 2011/2013Rear RightMP3 300 IE LT SPORT ABS ASR E4 - 2016/2018Rear RightMP3 300 LT YOURBAN SPORT ERL (M751) - 2013/2013Rear RightMP3 300 IE RL HYBRID ERL (M652) - 2011/2013Rear RightMP3 300 IE RL TOURING (M633) - 2011/2012Rear RightMP3 300 RL YOURBAN ERL - 2011/2015Rear RightMP3 300 RL YOURBAN SPORT ERL - 2013/2015Rear RightMP3 300 IE LT HYBRID (M721) - 2010/2011Rear RightX7 300 IE E3 (M622) - 2010/2011Rear RightMP3 300 IE LT (M641) - 2010/2010Rear RightMP3 300 LT YOURBAN ERL (M751) - 2011/2016Rear RightMP3 400 IE RL (M591) - 2007/2008Rear RightBEVERLY 400 IE TOURER E3 (M344) - 2008/2008Rear RightBEVERLY 400 IE E3 (M343) - 2007/2007Rear RightX EVO 400 E3 (M521) - 2007/2010Rear RightX8 400 IE E3 (M521) - 2007/2007Rear RightMP3 400 IE LT (M642) - 2009/2010Rear RightMP3 400 IE RL MIC (M591) - 2008/2010Rear RightMP3 500 LT SPORT (M643) - 2011/2013Rear RightMP3 500 LT SPORT (M861) - 2014/2016Rear RightMP3 500 RL SPORT (M592) - 2012/2012Rear RightMP3 500 LT BUSINESS ABS ASR E4 (TA12) - 2017/2017Rear RightX9 500 EVOLUTION ABS (M270) - 2004/2006Rear RightX9 500 (M270) - 2001/2002Rear RightMP3 500 LT BUSINESS ABS (M861) - 2015/2016Rear RightMP3 500 LT BUSINESS (M643) - 2011/2013Rear RightBEVERLY 500 CRUISER E3 (M345) - 2007/2011Rear RightBEVERLY 500 (M341) - 2003/2006Rear Right
GILERA6 compatible models
NEXUS 125 4T E3 - 2007/2010Rear RightNEXUS 250 - 2007/2007Rear RightNEXUS 300 - 2009/2011Rear RightNEXUS 500 - 2003/2012Rear RightFUOCO 500 - 2007/2015Rear RightNEXUS 500 SP - 2006/2006Rear Right
APRILIA4 compatible models
SR 125 MAX - 2012/2015Rear RightSCARABEO 125 IE - 2010/2012Rear RightSCARABEO 200 IE - 2010/2012Rear RightSR 300 MAX - 2012/2015Rear Right
