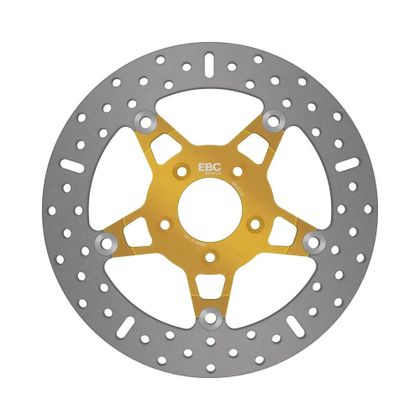

EBC Series X Round brake discRef : FA00452A / 17102438

Series X Brake Disc (Manufacturer Ref. MD523X) by EBC: a floating disc designed for demanding roadsters. Made from stainless steel with a gold finish on the inner part, this rotor combines robustness and thermal control for sharp and repeated braking on winding roads or urban journeys. The floating architecture limits heat-related stresses and preserves the disc's geometry during repeated efforts.

• System: Floating disc with patented S-Drive system (square rivets housed in square pockets), allowing the outer rotor to expand and contract freely without locking the rivet.
• Construction: Manual assembly and inspection to ensure careful fitting and precise finishing.
• Materials & finish: Stainless steel / gold inner for corrosion resistance and a neat appearance.
• Technical specifications:
  • Drilling circle: 82.5 mm
  • Outer diameter: 290 mm
  • Inner diameter: 56.4 mm
  • Thickness: 5.0 mm
  • Shape: round

Ideal for roadsters and compatible with several Harley XR 1200 variants (e.g. XR 1200 X 2012–2013, XR 1200 2010). This Series X disc offers sharp braking, good heat management, and durability suited for spirited riding while remaining within manufacturer tolerances.
