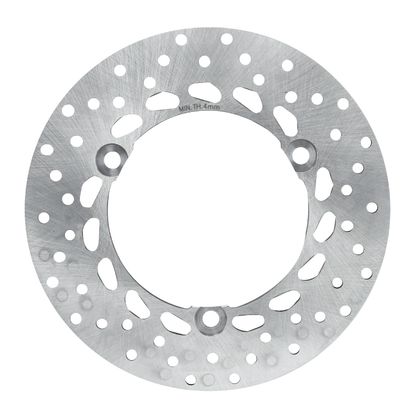

P2R EXT 230mm - INT 120mm - 3 HOLES Round brake discRef : P2R04464A / 170916

Round Brake Disc ADAPTABLE BRAKE DISC FOR YAMAHA 125 N-MAX 2015+2018 REAR (EXT 230mm - INT 120mm - 3 HOLES) by P2R

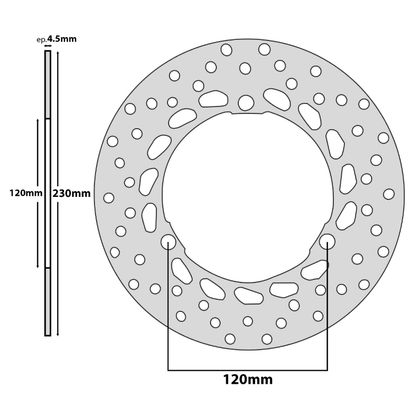

This adaptable brake disc is designed for replacing the rear wheel of the YAMAHA N‑MAX 125. Its outer dimensions of 230 mm, inner dimensions of 120 mm, and thickness of 4.5 mm meet the necessary specifications for precise installation.

Practicality and Features

• Pitch between fixing holes of 120 mm to ensure precise alignment of the disc during installation
• 3 fixing holes to match the hub drilling and facilitate replacement
• Rear position indicated for suitable mounting on the rear wheel

Usage and Performance

• Outer diameter of 230 mm to match the expected brake diameter during replacement
• Inner diameter of 120 mm for proper centring on the hub
• A thickness of 4.5 mm to maintain assembly distance and limit friction risks

The Advantages

• FIXED type for stable attachment to the hub
• Sold individually

• YAMAHA N-MAX 125 (2015+)
