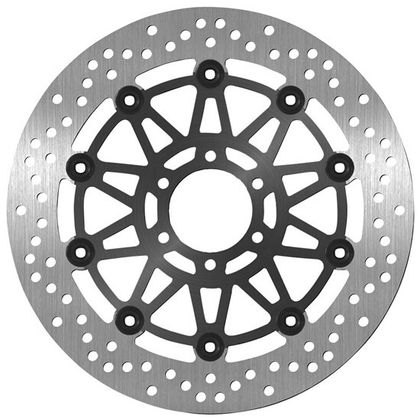

SBS 5090 Round brake discRef : SBS00245A / 5090

Round Brake Disc 5090 by SBS

This round brake disc is designed for replacement on road motorcycles. The main dimensions and drilling specifications are provided to verify compatibility with the hub and fittings. This disc allows for direct installation when it meets the original specifications.

Design and Materials

• Ext. Dia. = 298 ensures dimensional matching for direct replacement
• thickness = 4 maintains the intended gap between the pads for compliant braking contact

Fit and Cut

• number of holes = 6 corresponds to the 6-hole drilling for installation without modification on compatible hubs
• hole dia. = 8.5 indicates the diameter of the fittings to facilitate the selection of screws and washers

Advantages

• Int. Dia. = 64 aids in centring on the hub for precise disc positioning
• OEM Reference 5205090100

Compatible with a selection of models including:

• APRILIA RST 1000 FUTURA E1 1000 (2004)
• YAMAHA FZS 600 FAZER E1 600 (2003)
• MOTO GUZZI DAYTONA 1000 1000 (1994)
