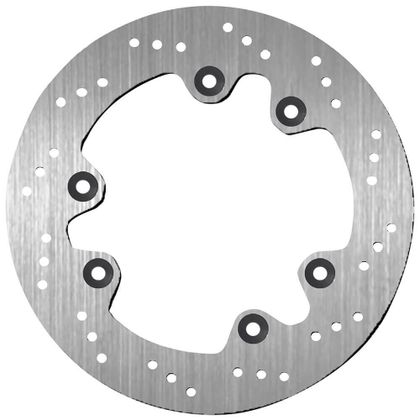

Round Brake Disc 5113 by SBS
Replacement round brake disc supplied with the necessary technical specifications to verify compatibility before installation. The drilling and dimension information allows for confirmation of fit and facilitates installation on the relevant vehicles.
Design and Materials
- Ext. Dia. = 250 to match the expected outer diameter and ease positioning on the braking system
- Int. Dia. = 134.5 to ensure precise centring on the hub and limit play
- Thick. = 4 to maintain the intended clearance between the disc and pads during installation

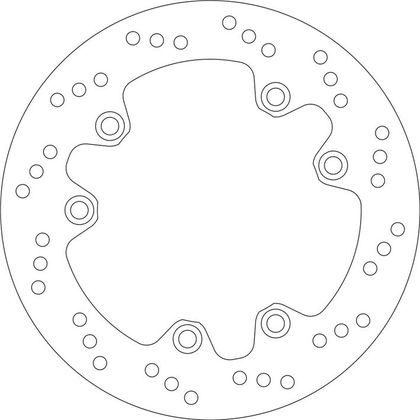

- No. of holes = 6 and Hole Dia. = 10.5 to indicate the exact drilling and ensure alignment of the fixings
Benefits
- OEM Reference 5205113100
- Road Type to identify the intended use and guide the choice of disc based on road usage
Compatible with a selection of models including:
- SUZUKI DR 800 S 800 cm3 (1997)
- SUZUKI DR 650 RSE 650 cm3 (1996)
- SUZUKI DR 650 RE 650 cm3 (1995)
