SBS 5148 Round brake discRef : SBS00269A / 5148

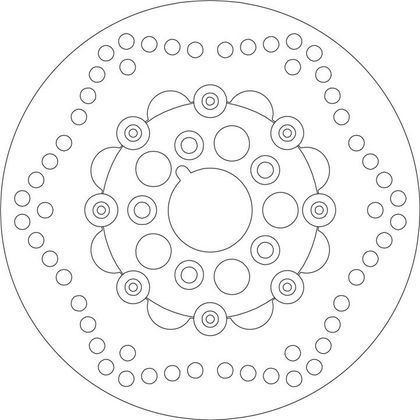

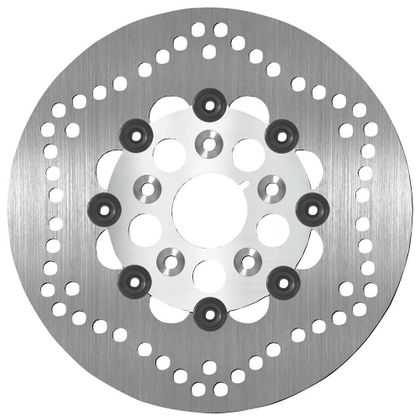

Round Brake Disc 5148 by SBS

This round brake disc is designed for replacement on road motorcycles. Key dimensions are provided to facilitate selection and installation: outer diameter 254 mm, inner diameter 50.8 mm, thickness 5 mm, and drilling 5 x 8.5 mm.

Design and Materials

• Outer diameter of 254 mm for a precise fit on compatible flanges and to aid in centering the disc
• Inner diameter of 50.8 mm to ensure proper centering on the hub during installation
• Thickness of 5 mm to maintain the useful dimension during replacement and limit thickness adjustments
• OEM reference 5205148100

Practicality and Features

• 5 mounting holes to match the hub drilling and simplify installation
• Hole diameter of 8.5 mm to accommodate suitable axles or mounting screws without modification
• Road type indicated for use on road vehicles and compliant replacement for road applications

Compatible with a selection of models including:

• HARLEY DAVIDSON TOURING 1340 ELECTRA GLIDE STANDARD (1985 - 1340 cc)
• HARLEY DAVIDSON TOURING 1340 TOUR GLIDE CLASSIC (1984 - 1340 cc)
• HARLEY DAVIDSON TOURING 1340 TOUR GLIDE (1984 - 1340 cc)
