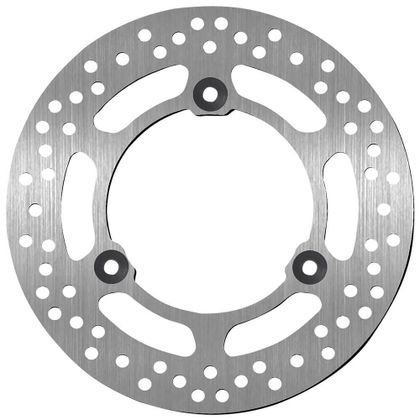

SBS 5201 Round brake discRef : SBS00305A / 5201

Round Brake Disc 5201 by SBS

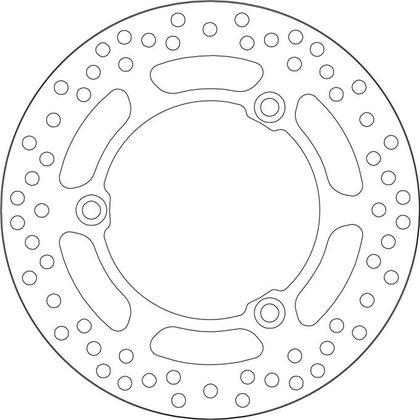

This round brake disc is designed for mechanical replacement, featuring detailed dimensions and drillings to verify compatibility before installation. Outer diameter 240, inner diameter 115, and thickness 4.5 as specified by the manufacturer. Three mounting holes with a diameter of 10.5 for alignment with original supports.

Design and Materials

• Outer diameter 240 and inner diameter 115 to match assembly specifications and facilitate disc replacement
• Thickness 4.5 to maintain the required space between braking system components during installation
• Three mounting holes with a diameter of 10.5 to ensure precise alignment on mounting points

Practicality and Features

• Clear dimensional specifications to assist in selecting the appropriate disc for replacement
• OEM reference 5205201100

Compatible with a selection of models including:

• SUZUKI UH 200 BURGMAN 4T LC IE ABS E4 200 cm3 (2020)
• SUZUKI UH 125 BURGMAN 4T LC CARB ABS E4 125 cm3 (2020)
• SUZUKI UH 200 BURGMAN 4T LC IE E3 200 cm3 (2016)
