SBS 5204 Round brake discSUZUKI 650 AN 650 BURGMAN - 2003 - 2004Ref : SBS00308A / 5204

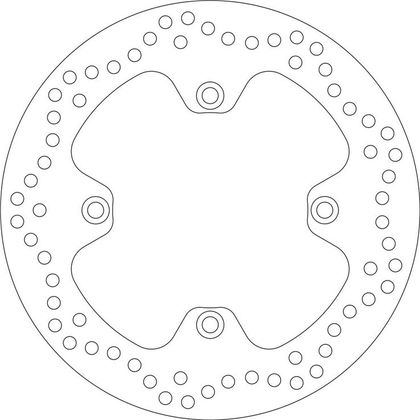

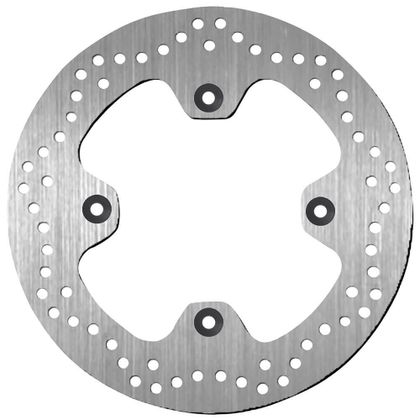

Round Brake Disc 5204 by SBS

This round brake disc is designed for replacement or maintenance of the braking system. Detailed dimensions are provided to verify mechanical compatibility with your wheel and fittings. Manufacturer reference is included to accurately identify the part during purchase.

Practicality and Features

• Outer diameter of 260 mm to ensure the disc matches the required diameter for your caliper and wheel
• Inner diameter of 121 mm to check the fit on the hub and prevent any play during installation
• Thickness of 4.5 mm to confirm compatibility with the pad spacing and wear tolerance
• Number of holes: 4 to ensure alignment with the mounting points of your hub
• Hole diameter of 10.5 mm to verify the passage of axles or fixing screws during installation
• OEM reference 5205204100

Usage and Performance

• Road type indicated for suitability in road traffic conditions
• Urban environment for regular use in urban settings and during daily commutes

Compatible with a selection of models including:

• SUZUKI AN 650 BURGMAN 4T LC IE E3 650 (2004)
