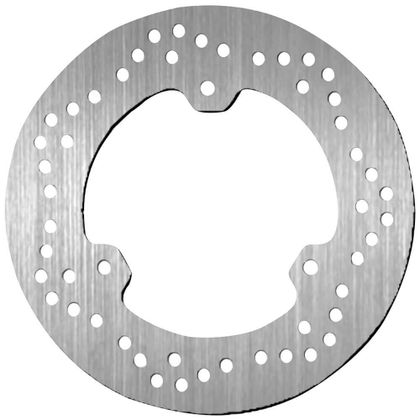

SBS 5245 Round brake discRef : SBS00338A / 5245

Round Brake Disc 5245 by SBS

Replacement round brake disc designed for motorcycles, supplied with manufacturer dimensions to verify compatibility. Designed for mounting on a 3-hole pattern, it facilitates replacement with a part of identical specifications. The technical data allows for validation of the fit before installation.

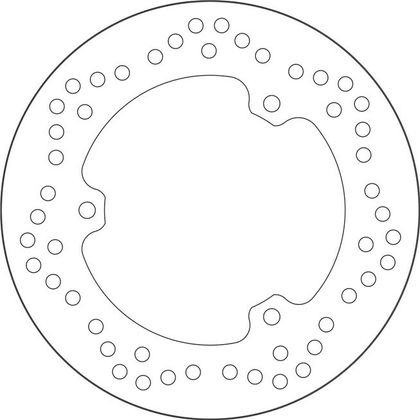

Design and Materials

• Outer diameter 230 to check correspondence with the original diameter and caliper
• Inner diameter 116 ensuring precise centring on the hub seat
• Thickness 5 ensuring the correct spacing of the brake pads
• 3 mounting holes with a hole diameter of 8.5 facilitating direct mounting on a 3-point drilling

Practicality and Features

• Designed for Road use to meet the mounting requirements of road motorcycles
• Standard round shape facilitating replacement without adaptation of the mounting structure

Advantages

• OEM Reference 5205245100
• Targeted for the Urban environment to suit city commuting

Compatible with a selection of models including:

• YAMAHA MAJESTY 250 4T LC CARB E1 250 (2003)
• MBK SKYLINER 250 4T LC CARB E1 250 (2003)
• YAMAHA MAJESTY 250 4T LC CARB ABS E1 250 (2003)
