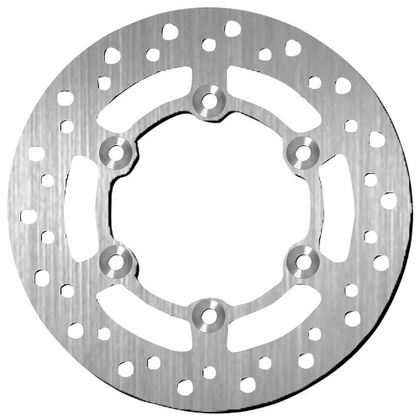

SBS 5255 Round brake discRef : SBS00348A / 5255

Round Brake Disc 5255 by SBS

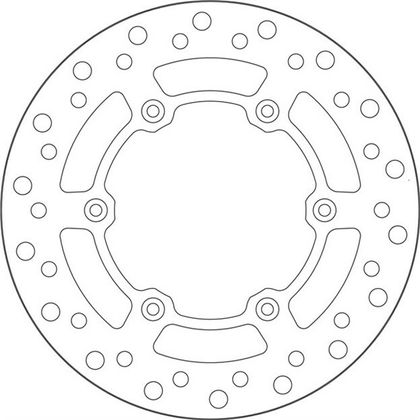

This round brake disc is designed for motocross with precise dimensions to identify compatibility with your braking system. Main dimensions: outer diameter 220, inner diameter 100, and thickness 3 to ensure proper fit before installation.

Design and Materials

• Outer diameter 220 makes it easy to identify a disc compatible with your motorcycle's brake diameter
• Inner diameter 100 allows for alignment verification on the hub for precise installation
• Thickness 3 provides the required thickness specification to maintain clearance between the pad and disc

Practicality and Features

• 6 mounting holes correspond to standard drilling and simplify compatibility checks with your hub
• Hole diameter 6.5 helps to verify the compatibility of screws and mounting axles before installation

Usage and Performance

• Cross type indicates an off-road orientation for use on motocross bikes
• Ensure that the dimensions and drilling match your motorcycle's original disc before installation to guarantee correct assembly

Compatible with a selection of models including:

• SUZUKI RM 85 STD WHEELS 17/14 85 (2023)
• YAMAHA YZ 80 STD WHEELS 17/14 80 (2001)
• SUZUKI RM 85 BIG WHEELS 19/16 85 (2023)
