Trw 17100977 Round brake discRef : TRW00341A / 17100977

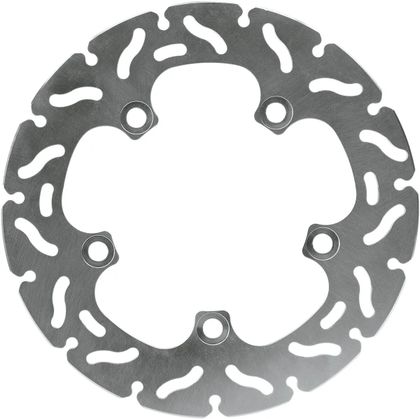

TRW Brake Disc (manufacturer ref. MST233) — disc from the BRAKE ROTORS - STREET range, designed for Vintage/Classic, Touring, Trail/Adventure, Roadster, and Sport/Racing motorcycles. Made from high-strength steel (HRC 35 heat treatment), this round rotor with an outer diameter of 282 mm features a carefully machined braking surface to limit vibrations and ensure consistent contact with the pads.

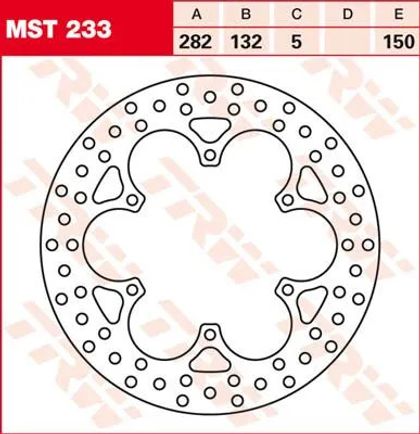

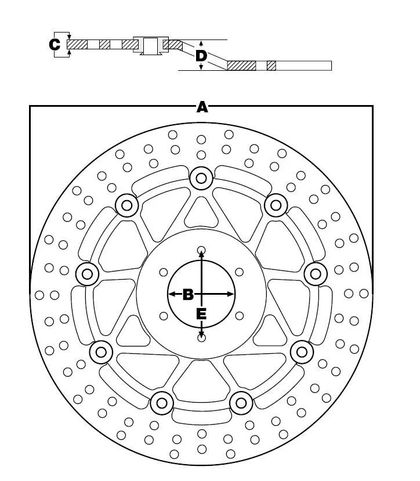

• Dimensions: Ø outer 282 mm • Ø inner 132 mm • Bolt circle 150.0 mm • Thickness 5.0 mm
• Construction: non-deformable steel surface, floating hub in anodised titanium grey aluminium for a neat appearance and precise assembly
• Manufacturing: high-precision laser cutting and heat post-treatment for stable geometry and controlled wear
• Pad compatibility: suitable for organic, sintered metal, or carbon-based pads
• Usage: approved for road use (ABE) and can be used occasionally on track
• Sold individually: for dual disc front ends, order two units

Ideal for replacing a worn disc or restoring the braking performance of your machine — particularly suitable for YAMAHA FJR 1300 (2020), ROYAL ENFIELD BULLET 500 EFI (2016), and MZ BAGHIRA 660 (2006) models. Neat finish and technical specifications for consistent braking performance race after race.
