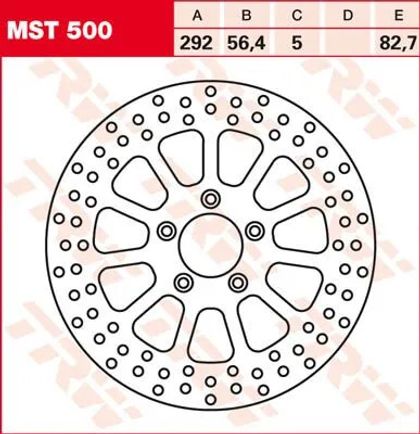

Trw 17102229 Round brake discRef : TRW00469A / 17102229
Recommended retail price:125,16 €?
Check compatibility
Add to basket 87,61 €
- Description
- Compatible motorbikes
- Questions and answers
DescriptionTrw 17102229 Round brake disc
'%3e%3cpath%20fill='%23f1ab00'%20d='M.702%207.162l1.875%201.684%206.161-5.532L14.9%208.846l1.875-1.684L8.738-.053z'/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
Product details :
Features
TRW Brake Disc (manufacturer ref. MST500) — disc from the BRAKE ROTORS - STREET range, designed for Vintage/Classic, Touring and Roadster machines. Round steel disc, manufactured using the RAC TRW process: precision laser cutting, heat treatment and controlled hardness (HRC 35 standard) for stable geometry and low deformation under severe conditions.
- Type: Floating disc with anodised titanium grey aluminium inner ring
- Material: Steel (machined braking surface)
- Outer diameter: 292 mm (11.5")
- Inner diameter: 56.4 mm
- Drilling circle: 82.7 mm
- Thickness: 5.0 mm
- Sold: individually — order two discs for a dual disc application
The braking surface features a careful finish designed to limit vibrations and optimise contact with different qualities of pads (organic, sintered metal or carbon). The profile and design of the drillings ensure a more uniform temperature distribution and help reduce wear and the risk of pad glazing. Compatible with TRW pads.
Examples of compatible models: Harley-Davidson XL 1200 C ABS Sportster Custom (2019), FLSTN 1690 Softail Deluxe (2017), FLSTFB 1690 Fat Boy Special (2017).
Technical information :
Reference
TRW00469A / 17102229
Type
Monobloc (Fixed)
Material
Steel
Outside diameter
292 mm (11.5")
Bolting pattern
5 holes
Thickness
5.0 mm
Shape
Round
Inside diameter
56.4 mm
Product name
Brake disc
Units
Per unit
Drilling circle
82.7 mm
Compatible motorbikes
HARLEY DAVIDSON67 compatible models
XLH 883 SPORTSTER - 1999/2003FrontXL 883 N SPORTSTER IRON - 2005/2006 - 2009/2014FrontXL 883 R SPORTSTER ROADSTER - 2002/2004 - 2006/2006 - 2010/2013FrontXL 883 L LOW - 2005/2010FrontXL 883 C SPORTSTER - 2000/2010FrontXL 883 L SUPERLOW - 2011/2014FrontXL 1200 V SEVENTY-TWO - 2012/2013FrontXL 1200 S SPORTSTER SPORT - 1999/2003FrontXL 1200 N SPORTSTER NIGHTSTER - 2008/2012FrontXL 1200 L SPORTSTER LOW - 2006/2011FrontXL 1200 X SPORTSTER FORTY EIGHT - 2010/2014FrontXL 1200 C CUSTOM - 2004/2015 - 2017/2019FrontXL 1200 R SPORTSTER ROADSTER - 2004/2008FrontFXDS-CON 1340 DYNA CONVERTIBLE - 2000/2000FrontFXSTBI 1450 SOFTAIL NIGHT TRAIN - 2004/2006FrontFXDBI 1450 DYNA STREET BOB - 2006/2006FrontFXDX 1450 DYNA SUPER GLIDE SPORT - 2000/2003FrontFLHRSI 1450 ROAD KING CUSTOM - 2004/2006FrontFLHT 1450 ELECTRA GLIDE - 2000/2003FrontFXSTDI 1450 SOFTAIL DEUCE - 2001/2005FrontFLHTI 1450 ELECTRA GLIDE STANDARD - 2004/2006FrontFLHTCUI 1450 ELECTRA GLIDE ULTRA CLASSIC - 1999/2006FrontFXD 1450 DYNA SUPER GLIDE - 1999/2003FrontFXDI 1450 DYNA SUPER GLIDE 35th ANNIV. - 2006/2006FrontFXDCI 1450 DYNA SUPER GLIDE CUSTOM - 2005/2006FrontFLHRI 1450 ROAD KING - 2004/2006FrontFXDI 1450 DYNA SUPER GLIDE - 2004/2004FrontFXDL 1450 DYNA LOW RIDER - 1999/2005FrontFXSTD 1450 SOFTAIL DEUCE - 2000/2003FrontFLHR 1450 ELECTRA GLIDA ROAD KING - 1999/2003FrontFLHT 1450 ELECTRA GLIDE STANDARD - 1999/1999FrontFLHTCI 1450 ELECTRA GLIDE CLASSIC - 2004/2004FrontFXDXT 1450 DYNA SUPER GLIDE T-SPORT - 2001/2003FrontFXDXI 1450 DYNA SUPER GLIDE SPORT - 2004/2005FrontFLHTC 1450 ELECTRA GLIDE CLASSIC - 2002/2004FrontFLHRCI 1450 ROAD KING CLASSIC - 1999/2006FrontFXST 1450 SOFTAIL STANDARD - 2000/2003FrontFLSTCI 1450 HERITAGE SOFTAIL CLASSIC - 2001/2006FrontFLSTF 1450 SOFTAIL FAT BOY - 2000/2003FrontFLSTFI 1450 FAT BOY - 2001/2006FrontFLSTS 1450 HERITAGE SPRINGER - 2000/2003FrontFXDLI 1450 DYNA LOW RIDER - 2004/2006FrontFXDWG 1450 DYNA WIDE GLIDE - 1999/2003FrontFLSTC 1450 HERITAGE SOFTAIL CLASSIC - 2000/2003FrontFXSTB 1450 NIGHT TRAIN - 2000/2003FrontFXDWGI 1450 EFI DYNA WIDE GLIDE - 2004/2006FrontFLSTFB 1548 FAT BOY - 2010/2011FrontFLSTN 1584 SOFTAIL DELUXE - 2007/2011FrontFLSTC 1584 HERITAGE SOFTAIL CLASSIC - 2007/2011FrontFLHT 1584 ELECTRA GLIDE STANDARD - 2007/2007FrontFLHTCU 1584 ULTRA CLASSIC ELECTRA GLIDE - 2007/2007FrontFXCWC 1584 SOFTAIL ROCKER C - 2008/2011FrontFXCW 1584 SOFTAIL ROCKER - 2008/2009FrontFLHR 1584 ROAD KING - 2007/2007FrontFXSTC 1584 SOFTAIL CUSTOM - 2007/2009FrontFLHRC 1584 ROAD KING CLASSIC - 2007/2007FrontFLHX 1584 STREET GLIDE - 2007/2007FrontFXSTB 1584 SOFTAIL NIGHT TRAIN - 2007/2009FrontFXS 1584 BLACKLINE - 2011/2012FrontFLSTSB 1584 SOFTAIL CROSS BONES - 2008/2011FrontFLSTF 1584 FAT BOY - 2007/2011FrontFLS 1690 SOFTAIL SLIM - 2012/2016FrontFLSTC 1690 HERITAGE SOFTAIL CLASSIC - 2012/2017FrontFLSTF 1690 FAT BOY - 2012/2014FrontFLSTN 1690 SOFTAIL DELUXE - 2012/2017FrontFLSTFB 1690 SOFTAIL FAT BOY SPECIAL - 2012/2017FrontFXS 1690 BLACKLINE - 2013/2013Front
