Trw 17102232 Round brake discRef : TRW00471A / 17102232
Recommended retail price:127,20 €?
Check compatibility
Add to basket 89,04 €
- Description
- Compatible motorbikes
- Questions and answers
DescriptionTrw 17102232 Round brake disc
'%3e%3cpath%20fill='%23f1ab00'%20d='M.702%207.162l1.875%201.684%206.161-5.532L14.9%208.846l1.875-1.684L8.738-.053z'/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
Product details :
Features
TRW MST501 — Road brake disc made of steel designed for demanding riders on Vintage/Classic, Touring, and Roadster bikes. This robust, precision-engineered solid disc features a finely machined braking surface to minimise the risk of warping and ensure even wear on the pads.
- Manufacturer reference: MST501
- Brand: TRW
- Type: Brake disc, category BRAKE ROTORS - STREET

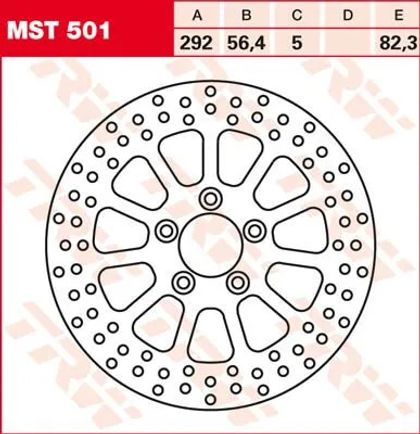

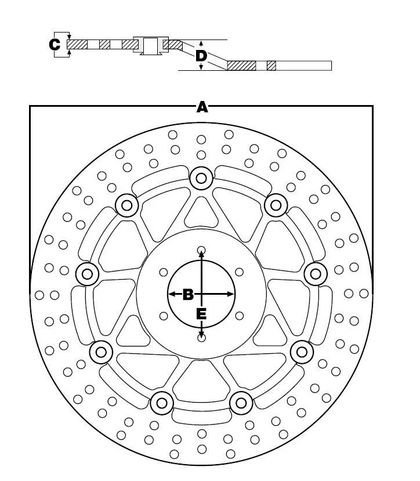

- Dimensions: outer diameter 292 mm (11.5"), inner diameter 56.4 mm, bolt circle 82.3 mm, thickness 5.0 mm
- Material: non-deformable steel, post-hardening heat treatment (HRC 35 standard)
- Construction: high-precision laser cut; machined surface for controlled wear
- Feature: floating version with anodised titanium grey aluminium inner hub
- Pad compatibility: organic, sintered metal, or carbon-based
- Sold individually: order two discs for dual disc applications
Designed for road use (track use possible), this TRW disc focuses on durability and stability of the pressure point. Ideal for the listed Harley-Davidson models and other similar customs/touring bikes, it integrates perfectly with braking systems aimed at reliability and progressive feel at the lever. Check the diameter and bolt circle before installation.
Technical information :
Reference
TRW00471A / 17102232
Units
Per unit
Type
Monobloc (Fixed)
Outside diameter
292 mm (11.5")
Bolting pattern
5 holes
Thickness
5.0 mm
Shape
Round
Inside diameter
56.4 mm
Drilling circle
82.3 mm
Product name
Brake disc
Material
Steel
Compatible motorbikes
HARLEY DAVIDSON66 compatible models
XLH 883 SPORTSTER - 1999/2003RearXL 883 R SPORTSTER ROADSTER - 2002/2004 - 2006/2006RearXL 883 N SPORTSTER IRON - 2005/2006 - 2009/2010RearXL 883 L LOW - 2007/2010RearXL 883 C SPORTSTER - 2000/2010RearXL 1200 N SPORTSTER NIGHTSTER - 2008/2010RearXL 1200 C CUSTOM - 2004/2010RearXL 1200 R SPORTSTER ROADSTER - 2004/2008RearXL 1200 S SPORTSTER SPORT - 1999/2003RearXL 1200 V SEVENTY-TWO - 2012/2013RearXL 1200 L SPORTSTER LOW - 2009/2009RearFXDS-CON 1340 DYNA CONVERTIBLE - 2000/2000RearFXDCI 1450 DYNA SUPER GLIDE CUSTOM - 2005/2006RearFXDL 1450 DYNA LOW RIDER - 1999/2005RearFXDXT 1450 DYNA SUPER GLIDE T-SPORT - 2001/2003RearFLHTCI 1450 ELECTRA GLIDE CLASSIC - 2004/2004RearFLHT 1450 ELECTRA GLIDE STANDARD - 1999/1999RearFLHR 1450 ELECTRA GLIDA ROAD KING - 1999/2003RearFXSTD 1450 SOFTAIL DEUCE - 2000/2003RearFLHRCI 1450 ROAD KING CLASSIC - 1999/2006RearFXDI 1450 DYNA SUPER GLIDE - 2004/2004RearFXDBI 1450 DYNA STREET BOB - 2006/2006RearFXDX 1450 DYNA SUPER GLIDE SPORT - 2000/2003RearFLHRSI 1450 ROAD KING CUSTOM - 2004/2006RearFLHT 1450 ELECTRA GLIDE - 2000/2003RearFLHTC 1450 ELECTRA GLIDE CLASSIC - 2002/2004RearFXDI 1450 DYNA SUPER GLIDE 35th ANNIV. - 2006/2006RearFLHTCUI 1450 ELECTRA GLIDE ULTRA CLASSIC - 1999/2006RearFXD 1450 DYNA SUPER GLIDE - 1999/2003RearFLHTI 1450 ELECTRA GLIDE STANDARD - 2004/2006RearFLHRI 1450 ROAD KING - 2004/2006RearFXST 1450 SOFTAIL STANDARD - 2000/2003RearFXSTB 1450 NIGHT TRAIN - 2000/2003RearFXDXI 1450 DYNA SUPER GLIDE SPORT - 2004/2005RearFLSTC 1450 HERITAGE SOFTAIL CLASSIC - 2000/2003RearFLSTCI 1450 HERITAGE SOFTAIL CLASSIC - 2001/2006RearFLSTF 1450 SOFTAIL FAT BOY - 2000/2003RearFXSTDI 1450 SOFTAIL DEUCE - 2001/2005RearFLSTFI 1450 FAT BOY - 2001/2006RearFLSTS 1450 HERITAGE SPRINGER - 2000/2003RearFXDLI 1450 DYNA LOW RIDER - 2004/2006RearFXDWG 1450 DYNA WIDE GLIDE - 1999/2003RearFXDWGI 1450 EFI DYNA WIDE GLIDE - 2004/2006RearFXSTBI 1450 SOFTAIL NIGHT TRAIN - 2004/2006RearFLSTFB 1548 FAT BOY - 2010/2011RearFLHTCU 1584 ULTRA CLASSIC ELECTRA GLIDE - 2007/2007RearFLHT 1584 ELECTRA GLIDE STANDARD - 2007/2007RearFLHX 1584 STREET GLIDE - 2007/2007RearFLHR 1584 ROAD KING - 2007/2007RearFLSTC 1584 HERITAGE SOFTAIL CLASSIC - 2007/2011RearFLHRC 1584 ROAD KING CLASSIC - 2007/2007RearFXSTC 1584 SOFTAIL CUSTOM - 2007/2009RearFXCWC 1584 SOFTAIL ROCKER C - 2008/2011RearFXCW 1584 SOFTAIL ROCKER - 2008/2009RearFLSTN 1584 SOFTAIL DELUXE - 2007/2011RearFLSTF 1584 FAT BOY - 2007/2011RearFLSTSB 1584 SOFTAIL CROSS BONES - 2008/2011RearFXS 1584 BLACKLINE - 2011/2012RearFXSTB 1584 SOFTAIL NIGHT TRAIN - 2007/2009RearFLSTN 1690 SOFTAIL DELUXE - 2012/2017RearFLD 1690 DYNA SWITCHBACK - 2012/2016RearFLSTF 1690 FAT BOY - 2012/2014RearFLSTC 1690 HERITAGE SOFTAIL CLASSIC - 2012/2017RearFLS 1690 SOFTAIL SLIM - 2012/2016RearFLSTFB 1690 SOFTAIL FAT BOY SPECIAL - 2012/2017RearFXS 1690 BLACKLINE - 2013/2013Rear
