NEW
Non-contractual photo
NEW
Trw 17104182 Round brake discRef : TRW00477A / 17104182
Recommended retail price:228,60 €?
Check compatibility
Add to basket 160,02 €
- Description
- Compatible motorbikes
- Questions and answers
DescriptionTrw 17104182 Round brake disc
'%3e%3cpath%20fill='%23f1ab00'%20d='M.702%207.162l1.875%201.684%206.161-5.532L14.9%208.846l1.875-1.684L8.738-.053z'/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
Product details :
Features

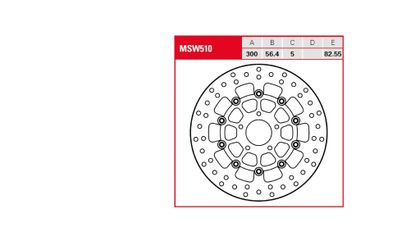

TRW Floating Round Brake Disc – Manufacturer Ref. MSW510
Round brake disc for road use, offered by TRW and suitable for Vintage/Classic and Touring categories. Built with a solid steel track riveted to a titanium grey anodised aluminium hub, this floating rotor combines robust materials and a design aimed at managing thermal expansions.
- Reference: MSW510
- Type: Floating brake disc, sold individually (order 2 for dual disc mounting)
- Outer diameter: 300 mm (11.8")
- Thickness: 5.0 mm
- Drilling circle: 82.55 mm
- Inner diameter: 56.4 mm
- Available finishes: Black, Silver, Stainless steel
- Pad compatibility: Compatible with various qualities of TRW pads
The track features a careful finish to limit vibrations and promote uniform contact with the pads. The floating design allows for axial play between the track and hub, useful for compensating thermal variations during sustained riding. Ideal for customs and large trails: examples of common applications — Harley-Davidson FLTRT Road Glide 114 (2024), FLRT Freewheeler 114 (2024), FLHCS Softail Heritage Classic 114 (2024).
Technical information :
Reference
TRW00477A / 17104182
Style
Complete Floating
Bolting pattern
5 holes
Thickness
5.0 mm
Model
Circle
Drilling circle
82.55 mm
Braking surface
Perforated
Shape
Round
Inside diameter
56.4 mm
Colour/Finish
Black| Silver| Stainless Steel
Outside diameter
300 mm (11.8")
Product name
Brake disc
Units
Per unit
Type
Two Pieces (Floating)
Material
Aluminium|Stainless steel
Compatible motorbikes
HARLEY DAVIDSON65 compatible models
FLHR 1584 ROAD KING - 2008/2009FrontFXDF 1584 DYNA FAT BOB - 2008/2011FrontFXDB 1584 DYNA STREET BOB - 2007/2013FrontFLHRC 1584 ROAD KING CLASSIC - 2008/2011FrontFXDWG 1584 DYNA WIDE GLIDE - 2010/2012FrontFLHTK 1584 ELECTRA GLIDE ULTRA - 2010/2011FrontFXDL 1584 DYNA LOW RIDER - 2007/2008FrontFXDC 1584 DYNA SUPER GLIDE CUSTOM - 2007/2007FrontFLHX 1584 STREET GLIDE - 2008/2011FrontFLHTCU 1584 ULTRA CLASSIC ELECTRA GLIDE - 2009/2011FrontFLHT 1584 ELECTRA GLIDE STANDARD - 2008/2010FrontFXDB 1690 DYNA STREET BOB - 2014/2017FrontFLHR 1690 ROAD KING - 2016/2016FrontFXDL 1690 DYNA LOW RIDER - 2014/2017FrontFLTRXS 1690 ROAD GLIDE SPECIAL - 2015/2016FrontFLHTKL 1690 ULTRA LIMITED LOW - 2015/2016FrontFLHXS 1690 STREET GLIDE SPECIAL - 2015/2016FrontFLHR-ANV ROAD KING ANNIV. EDITION - 2013/2013FrontFLHX 1690 STREET GLIDE - 2011/2016FrontFXDF 1690 DYNA FAT BOB - 2012/2012FrontFLHTK 1690 ELECTRA GLIDE ULTRA LIMITED - 2014/2016FrontFLHTC 1690 ELECTRA GLIDE CLASSIC - 2011/2012FrontFLHRC 1690 ROAD KING CLASSIC - 2011/2016FrontFLD 1690 DYNA SWITCHBACK - 2012/2016FrontFLHTCUTG 1690 TRI GLIDE ULTRA - 2014/2016FrontFLHTCU 1690 ELECTRA GLIDE ULTRA CLASSIC - 2012/2016FrontFLHTK 1745 ELECTRA GLIDE ULTRA LIMITED - 2017/2018FrontFLHR 1745 ROAD KING - 2017/2018 - 2022/2022FrontFLHTCU 1745 ELECTRA GLIDE ULTRA CLASSIC - 2018/2018FrontFLHTCUTG 1745 TRI GLIDE ULTRA - 2017/2019FrontFLHTKL 1745 ULTRA LIMITED LOW - 2017/2018FrontFLHTK 1745 ULTRA LIMITED - 2018/2018FrontFLHXS 1745 STREET GLIDE SPECIAL - 2017/2018FrontFLRT 1745 FREEWHEELER - 2018/2019FrontFLTRU 1745 ROAD GLIDE ULTRA - 2017/2017FrontFLTRXS 1745 ROAD GLIDE SPECIAL - 2017/2018FrontFLHR 1750 ROAD KING - 2020/2021FrontFLSB 1750 SPORT GLIDE - 2019/2022FrontFLTRU 1750 ROAD GLIDE ULTRA - 2018/2018FrontFLTRX 1750 ROAD GLIDE - 2018/2020FrontFXBR 1750 BREAKOUT - 2018/2019FrontFLHX 1750 STREET GLIDE - 2018/2020FrontFXLR LOW RIDER - 2018/2019FrontFLDE 1750 SOFTAIL DELUXE - 2018/2019FrontFLHRXS 1750 ROAD KING SPECIAL - 2018/2018FrontFLHC 1750 HERITAGE CLASSIC - 2018/2021FrontFXBB 1750 STREET BOB - 2018/2019FrontFXFB 1750 FAT BOB - 2018/2019FrontFLFB 1750 FAT BOY - 2018/2020FrontFXDSE 1800 DYNA SCREAMIN EAGLE CVO - 2007/2008FrontFLHTKSE 1800 ELECTRA GLIDE ULTRA LIMITED CVO - 2014/2014FrontFLHTKSE 1802 CVO LIMITED - 2015/2016FrontFLHXSE 1802 CVO STREET GLIDE - 2016/2016FrontFLTRUSE 1802 CVO ROAD GLIDE ULTRA - 2015/2016FrontFXDLS 1802 DYNA LOW RIDER - 2017/2017FrontFLFBS 1868 FAT BOY - 2018/2022FrontFXFBS 1868 FAT BOB - 2018/2022FrontFLHCS 1868 HERITAGE CLASSIC - 2018/2022FrontFXDR 114 - 2019/2019FrontFXBRS 1868 BREAKOUT - 2018/2019 - 2022/2022FrontFLHTKSE 1868 CVO LIMITED - 2017/2017FrontSOFTAIL FAT BOY - 2023/2023FrontROAD GLIDE - 2023/2024FrontSOFTAIL BREAKOUT - 2020/2021FrontFLHTKSE 1917 ELECTRA GLIDE ULTRA LIMITED CVO - 2020/2021Front
