Trw 17110572 Round brake discRef : TRW00356A / 17110572

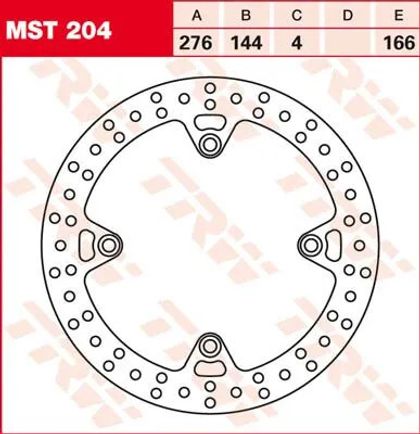

TRW MST204 — Brake Disc

Designed for trails and adventure machines, this TRW brake disc meets the demands of riders who ride on both road and track. It features a floating steel disc of RAC quality with a titanium grey anodised aluminium inner hub, and it benefits from a laser-machined track finish to limit vibrations and optimise pad/track contact. Its design aims for uniform temperature distribution and controlled wear even under heavy loads.

• Manufacturer reference: MST204
• Outer diameter: 276 mm
• Inner diameter: 144.0 mm
• Drilling circle: 166.0 mm
• Thickness: 4.0 mm
• Shape: Round — Material: Steel (track) / Aluminium (inner hub)

Suitable for organic, sintered metal, or carbon-based pads. The disc is heat-treated (HRC 35 standard) for good deformation resistance and incorporates a profile designed to limit pad glazing and stabilise the pressure point.

Sold individually — two discs are required for a dual disc application.

Common applications: HONDA XRV 750 Africa Twin (RD07 2002–2003, RD04 1992).
