Trw SWR Series Round brake discRef : TRW00470A / 17102231

SWR Series Brake Disc - TRW (manufacturer ref. MST500SWR)

Designed for the road and neo-classic styled machines, the SWR Series brake disc from TRW is a round fixed rotor with a simple and effective design. Its friction surface features a perforated band and rounded outer contours, characteristic of the Swing Design, which limits hot spots and promotes consistent lever feel. Made from non-deformable stainless steel, hardened to HRC 35 standard and benefiting from thermal post-treatment, it offers a refined surface finish to reduce vibrations and ensure uniform contact with the pads.

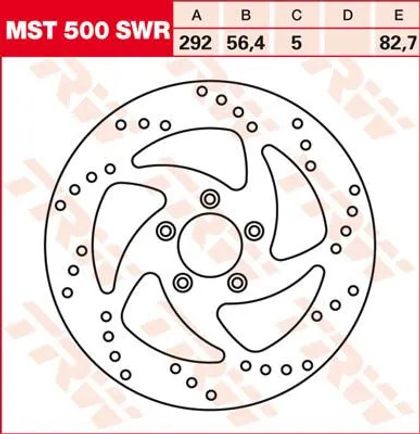

• Type: Round fixed disc (Swing Design)
• Material: Stainless steel, heat-treated
• Outer diameter: 292 mm (11.5")
• Inner diameter: 56.4 mm
• Drilling circle: 82.7 mm
• Thickness: 5.0 mm
• Sold individually — order two discs for a dual disc application

Compatible with TRW pads of various formulations, this rotor integrates particularly well into the Vintage/Classic, Touring and Roadster categories. Common application examples include: Harley-Davidson XL 883 R (2013), XL 1200 R (2008) and FLHX Street Glide (2007). A robust and understated part, it provides stable braking performance and a controlled feel for discerning riders.
