Touratech BLACK-T - Stage 3 - (-30 mm) - Black Shock absorberRef : TRT01969A / 01-661-5823-0

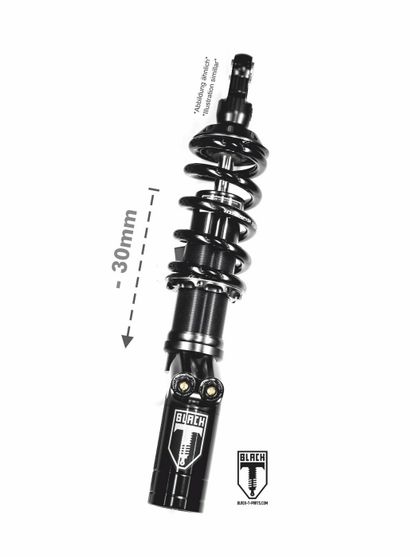

BLACK-T Stage 3 (-30 mm) – Black

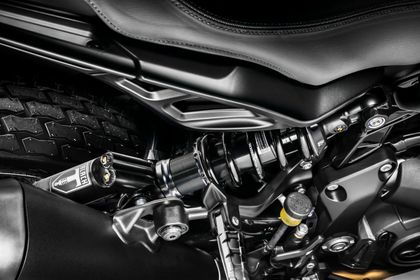

Designed by Touratech to lower the rear of the INDIAN FTR 1200 / FTR 1200 S (2019-2021) by 30 mm, this gas/oil shock absorber improves the stance and makes it easier to gain confidence when stationary and manoeuvring. The black infinitely progressive spring and adjustable preload allow for precise handling adjustments based on your weight and load, without compromising chassis sensitivity.

Technical specifications

• Lowering: -30 mm (rear mounting)
• Design: separation piston, Stage3 equalisation reservoir
• Adjustments: spring preload, rebound 50 clicks, compression 30 clicks (High & Lowspeed)
• Components: piston rod Ø 16 mm, piston Ø 46 mm
• Colour: black — Approval: ABE

The delivered configuration is preset for riders up to 100 kg (with equipment). Adjustments for higher loads or specific needs can be made upon request. To maintain road behaviour, it is recommended to adjust both the front and rear simultaneously and to avoid any inappropriate modifications to the fork that could impair handling. Installation should be carried out by a qualified workshop.

Supplied with:

• Black-T Stage3 -30 mm shock absorber ready to install
• Damping adjustment on the reservoir
• EBA documents and installation instructions
