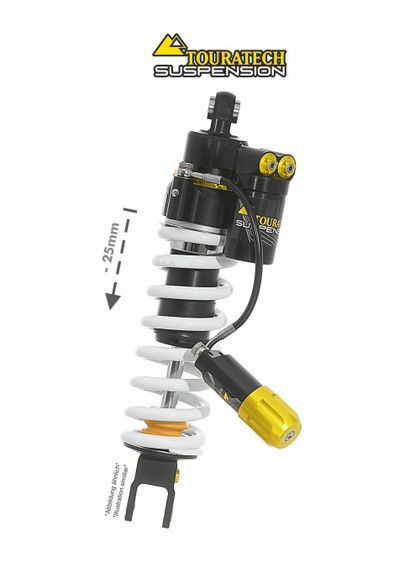

Touratech EXTREME (-25 mm) - Black - Yellow Shock absorberYAMAHA 700 TENERE 700 WORLD RAID - 2022 - 2026Ref : TRT01236A / 01-632-5892-0

Touratech EXTREME (-25 mm) - Black - Yellow: rear shock absorber ready to install to lower the seat height of the Yamaha Ténéré 700 World Raid (from 2022). Designed to remain discreet on the chassis while maintaining touring capability, this spring-shock absorber reduces the seat height by 25 mm and comes in the characteristic yellow/black Touratech finish.

The EXTREME model features the PDS, a hydraulic protection against shock breakage that uses a second piston: the damping is linked to the stroke and remains comfortable in most situations, with the PDS engaging at the end of the stroke to prevent mechanical jolts even with a heavy load. This setting targets road/touring use with luggage and varying conditions, without promising undocumented performance.

Key points:

• Lowering: -25 mm (ready to install)
• Colour: yellow / black
• Approval: ABE
• Mounting location: rear (Yamaha Ténéré 700 World Raid)
• Configured for a rider + luggage up to 100 kg (indicative value)
• Note: for optimal behaviour, adjust the front and rear simultaneously; replacing a single component may alter handling
• Important: avoid excessively pinching the fork sliders in the clamps, as this negatively impacts handling

Contents:

• Spring-shock absorber ready to be installed (-25 mm)
• General approval (ABE)
• Installation instructions / user manual

For motorcycles equipped with a larger tank or a specific luggage setup, springs with a higher coefficient may be offered upon request via the Touratech chassis control. Consider a short side stand or a short central stand after lowering for safe parking.
