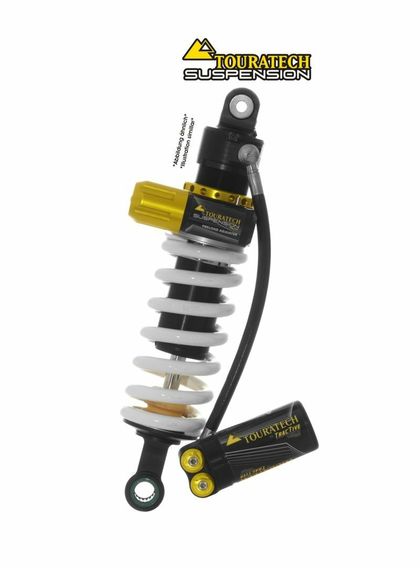

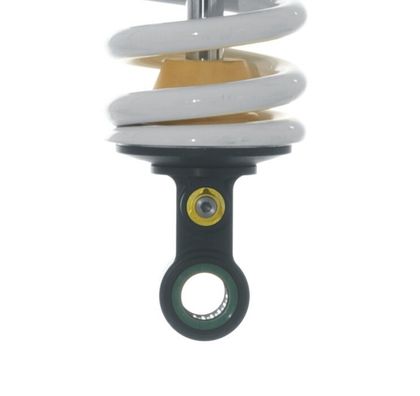

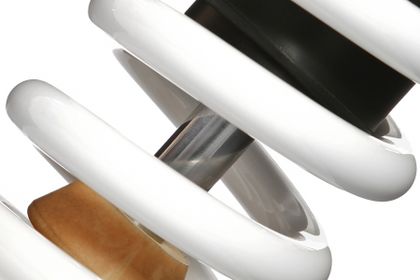

Touratech EXTREME - White Shock absorberTRIUMPH 1200 TIGER 1200 EXPLORER ABS - 2012 - 2017Ref : TRT01182A / 01-422-5870-0

Touratech EXTREME - White is a rear shock absorber spring designed for the Triumph Tiger Explorer (from 2012 onwards). Designed for long journeys and varying uses — road, rolling sections or loaded tracks — it offers a wide operating range and precise adjustments to adapt the chassis behaviour according to load and riding style.

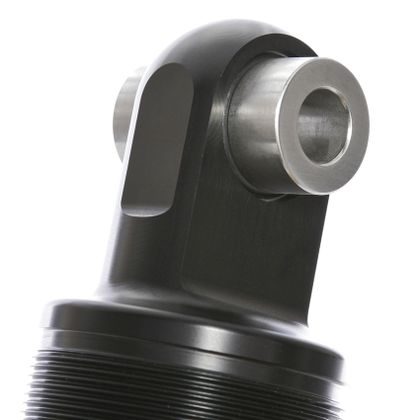

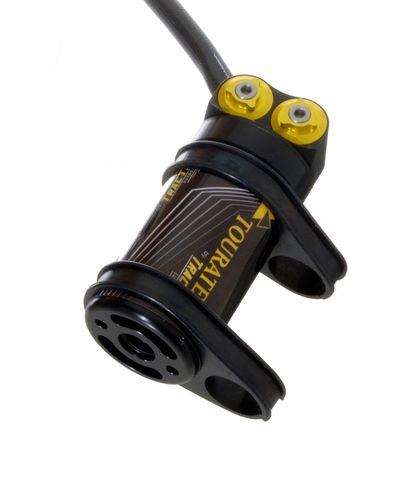

The design incorporates the PDS system (Protection against shock breakage) with a second damping piston that takes over at the end of the stroke to limit mechanical overload. The aluminium body, stainless steel bushings, and low-friction seals enhance durability and reduce wear. The separator piston system (oil/nitrogen) and the compensation reservoir ensure better response and optimised cooling during intensive use.

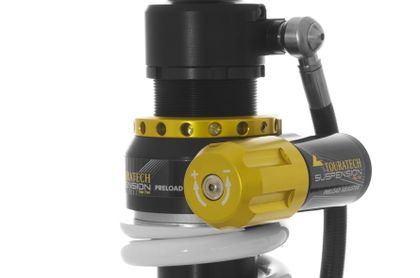

• Adjustments: hydraulic preload accessible via a knob, separate high/low speed compression, and finely adjustable rebound.
• Designed for: rider up to 100 kg (luggage included) — delivered pre-configured for Triumph Tiger Explorer.
• Finishes: white casing, ABE approval, rear mounting.
• Traceability: individual QR code with data and basic settings.

For optimal behaviour, also adjust the front of the rolling chassis (compatible springs/shock absorbers). In case of heavy modifications or increased luggage capacity, Touratech offers a stiffness adaptation upon request. For any technical questions, our chassis team is at your disposal.
