Touratech Level 1 - White Shock absorberSUZUKI 1000 DL 1000 V-STROM - 2002 - 2013Ref : TRT00188A / 01-058-0025-0

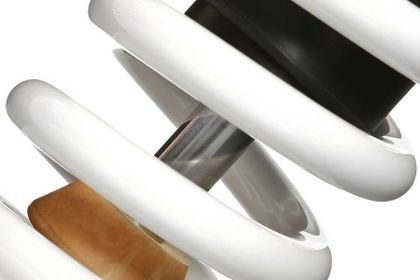

Touratech Level 1 - White: rear shock absorber specifically configured for the Suzuki DL1000 V‑Strom (2002‑2013). Designed for touring riders, this spring-shock absorber offers a wide range of adjustments to tailor the riding behaviour according to load and riding style.

• Usage: touring and road riding with luggage.
• Adjustments: adjustable preload (tool required) and precise damping adjustment (compression and rebound) to modify traction and pressure settings.

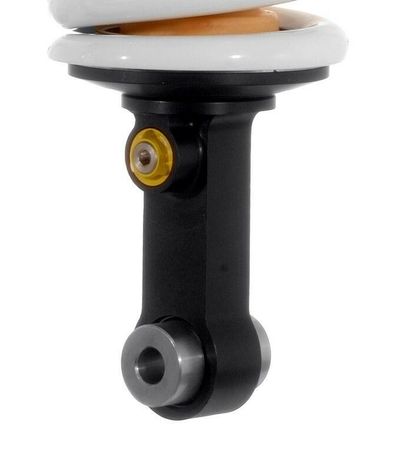

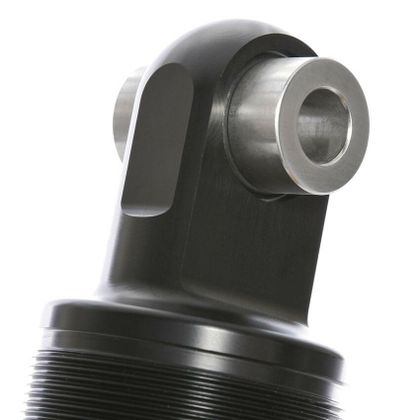

• Construction: lightweight aluminium body, low-friction seals, and stainless steel bushings in the eyelets for stable mounting without play.
• Technology: oil/nitrogen separator piston ensuring finer response, effective damping at high frequencies (damaged roads, tracks), and better cooling.
• Approval: ABE provided. Mounting: rear.
• Capacity: designed for a rider up to 100 kg (including luggage). Colour: white.
• Traceability: QR code engraved on the shock absorber with individual data and basic settings.

The Level 1 comes ready to use for the DL1000 V‑Strom according to Touratech's experience. For extreme configurations (larger tank or very heavy luggage), a stiffer spring is available upon request after chassis inspection. Replacing a single component without adjusting the rest of the setup may leave the riding behaviour sub-optimal.
