Touratech Level 1 - White Shock absorberTRIUMPH 1200 TIGER 1200 EXPLORER ABS - 2012 - 2017Ref : TRT00665A / 01-422-5860-0

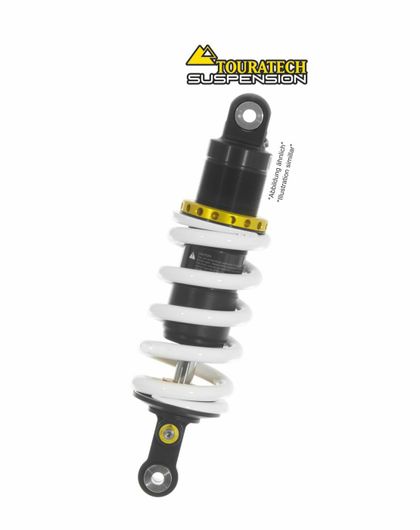

Touratech Level 1 - White is a rear shock absorber designed for the Triumph Tiger Explorer (from 2012 onwards). Designed for road travel, it offers a wide range of adjustments and reserves suitable for loaded motorcycles and long journeys.

• Mounting: rear, specifically configured for the Triumph Tiger Explorer (ready to use).
• Colour: white — Touratech finish.
• Approval: ABE included.
• Adjustments: adjustable preload with tool; independent compression and rebound adjustment (influence on traction and pressure damping) to fine-tune road behaviour.

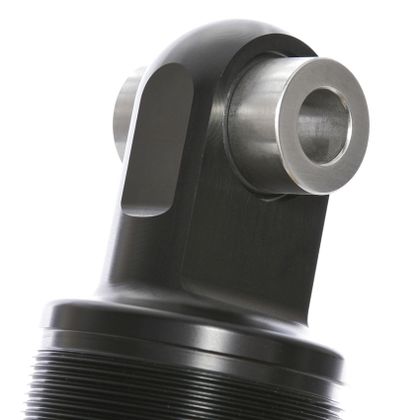

• Construction: lightweight aluminium body, special low-friction seals, stainless steel bushings in the eyelet for stable attachment without play.
• Technology: oil/nitrogen separator piston for finer response, improved thermal dissipation, and better performance on damaged roads or tracks.
• Access: individual QR code on the shock absorber to consult adjustment data via smartphone.
• Recommended load: base configuration suitable for a rider up to 100 kg (luggage included). Adaptation possible for heavier riders or loaded duo upon request (spring adjustment).

For optimal behaviour, Touratech also recommends adjusting the front (e.g. progressive fork springs ref. 01-422-5838-0): replacing a single component can lead to a compromise in road handling. This Level 1 is aimed at riders seeking precise, robust damping designed for travel.
