Touratech Level 2 (-25 mm) - White Shock absorberRef : TRT01117A / 01-403-5864-0

Touratech Level 2 (-25 mm) — White

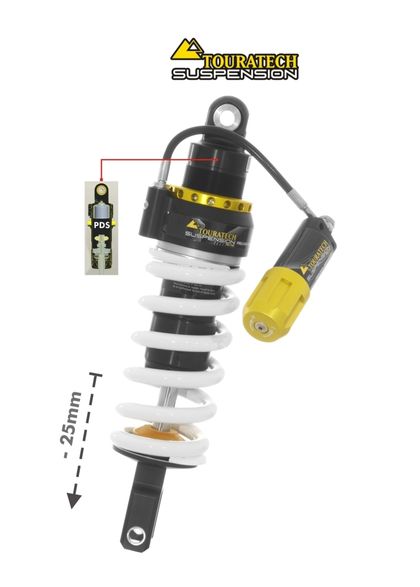

Specifically developed for the Honda CRF1100L Adventure Sports (without EERA equipment), this spring-shock absorber set lowers the seat by 25 mm while maintaining a geometry suitable for touring. Of the emulsion type, it offers adjustable hydraulic preload to adapt the suspension to the load and bulky luggage. The PDS remains integrated despite the compact installation, and hydraulic protection limits the risk of bottoming out on demanding tracks.

Key points:

• Only suitable for CRF1100L Adventure Sports without EERA.
• Designed for a rider + luggage mass of up to 100 kg maximum.
• Stroke-dependent damping for fine handling and comfort-oriented behaviour.
• Rear installation — colour: white.
• ABE approval provided.
• Important: always adjust the front and rear; replacing only one component may degrade handling.
• Do not reduce the fork travel until tightening*: this severely affects the motorcycle's behaviour.

For optimal handling after lowering, Touratech recommends using a short side stand and/or a short centre stand. If you modify the tank capacity or significantly increase the load, a spring with a higher coefficient can be provided after chassis inspection upon request.

Contents:

• Ready-to-install spring-shock absorber (-25 mm)
• General approval (ABE)
• Installation instructions / user manual
