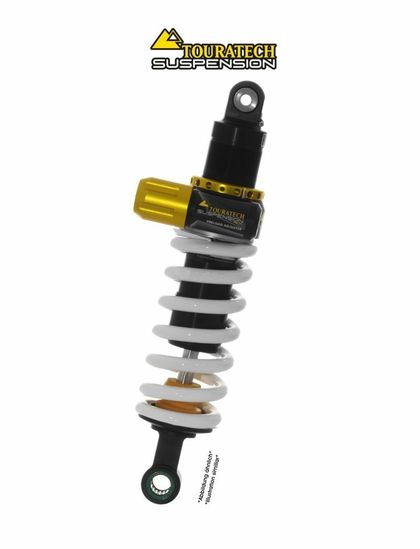

Touratech Level 2 - White Shock absorberTRIUMPH 1200 TIGER 1200 EXPLORER ABS - 2012 - 2017Ref : TRT01183A / 01-422-5880-0

Touratech Level 2 - White: rear shock absorber designed for the Triumph Tiger Explorer, tailored for touring and long journeys. The Level 2 offers a wide range of adjustments to accommodate varying loads (rider + luggage) and miles on both roads and challenging tracks, while maintaining a standard suspension height and ABE approval.

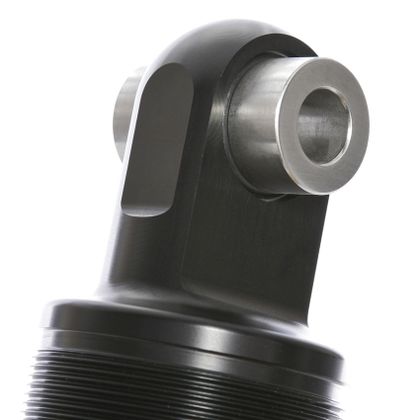

The design features a floating piston (oil/nitrogen separation), hydraulic preload adjustable via a knob, and precise settings for compression and rebound. The aluminium casing keeps the weight down, low-friction seals ensure longevity and responsiveness, and stainless steel bushings in the eye guarantee a play-free attachment even under intensive use. An engraved QR code allows access to individual data and the basic configuration of the spring-shock absorber.

• Colour: White
• Mounting location: rear (Triumph Tiger Explorer, from 2012)
• Height: standard
• Approval: ABE
• Optimised standard configuration for rider up to 100 kg (luggage included)
• Components: aluminium body, low-friction seals, stainless steel bushings, floating piston
• Advice: for optimal handling, adjust the front and rear together (progressive fork springs recommended - Art Nr: 01-422-5838-0)

If you plan to exceed the original load, Touratech offers spring adaptation (higher stiffness) upon request through their chassis control procedure.
