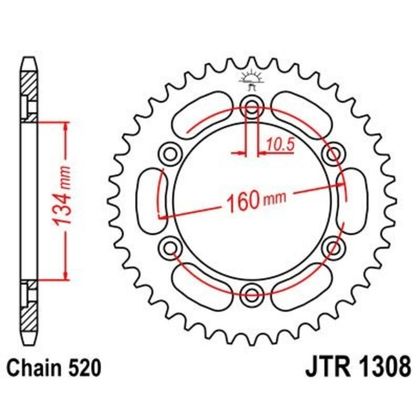

JT SPROCKETS Steel Sprocket 1308 - 40 Teeth (520)
Manufacturer Reference: JTR1308.40
Replace the rear sprocket with a simple, reliable part dedicated to the final drive of machines equipped with a 520 chain pitch. Made by JT SPROCKETS, this standard profile steel sprocket type 130 features 40 teeth for precise chain engagement and extensive compatibility with road transmissions.
- Material: standard steel
- Number of Teeth: 40
- Chain Pitch: 520
- Type: standard / type 130
- Usage: final drive for compatible roadsters and sportbikes
Designed for rear sprocket replacement, this reference is suitable for riders looking for an equivalent original part for mounting on an appropriate hub. The steel finish allows for reliable machining and a tooth profile that meets standards, ensuring a clean fit with your pinion and chain. Before installation, check the condition of the pinion and chain, adhere to the manufacturer's torque specifications, and ensure proper tension adjustment and adequate lubrication.
Examples of compatible motorcycles (for reference only):
- HONDA CBR 600 RR ABS (PC40) – 2017
- HONDA CBR 600 RR (PC40) – 2017
- HONDA CBR 1000 RR FIREBLADE SP (SC59) – 2016
