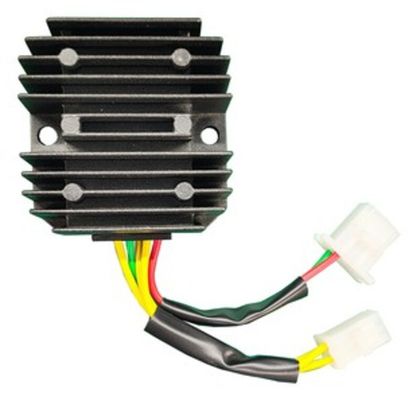

Tecnium by DZE Voltage regulatorRef : TE20309A / 1148704

TECNIUM by DZE Regulator — Manufacturer reference: 2692

This TECNIUM by DZE rectifier-regulator follows the specifications of the original part to ensure the conversion of three-phase current from the alternator into 12 V direct current and regulates the charging circuit up to 20 A. Designed for urban and roadster engines equipped with a three-phase stator, it uses SCR technology for rectification and does not feature an integrated sensor.

Technical specifications:

• Voltage: 12 V
• Current: 20 A
• Input type: three-phase
• Technology: SCR
• Output type: direct current (DC)
• Dimensions: H 30 mm × W 80 mm × D 80 mm
• Mounting pitch: 66 mm
• With sensor: no

Applications and references:

• Original reference: 31600-F62-200
• SYM GTS I 125 (2014-2018) — OEM code: 31600-F62-200
• SYM JoyMax 125 (2014-2015) — OEM code: 31600-F62-200

Bikes often associated: SYM GTS 125I, Peugeot Citystar 125, Honda Rebel 250.

Replacement part compliant with original dimensions and specifications, suitable for the charging and powering needs of your battery for urban and roadster use.
