SBS 5067 Wave brake discRef : SBS00235A / 5067

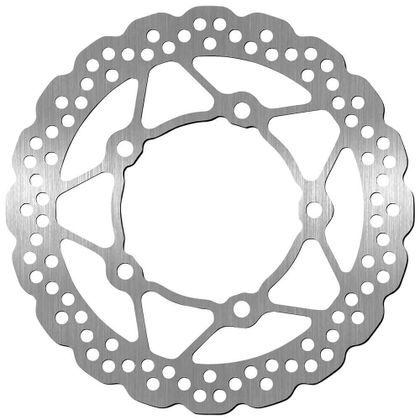

Wave Brake Disc 5067 by SBS

The Wave brake disc is designed for road use and comes with the main dimensions to check hub compatibility. The dimensions and drilling allow for compatibility verification before installation, ensuring a confident setup.

Design and Materials

• Outer diameter of 290 mm to verify compatibility with your braking system diameter
• Inner diameter of 130 mm to check hub fitment and minimise the risk of axial play
• Thickness of 5 mm to confirm the adjustment specification and maintain the correct spacing between pads and disc
• Number of holes: 5 to ensure the drilling matches your hub before installation
• Hole diameter of 10.5 mm to confirm the compatibility of fixing bolts during replacement
• OEM reference 5205067100

Practicality and Features

• Provision of technical specifications to facilitate compatibility checks before purchase or replacement
• Usable dimensional information to prepare for installation and verify necessary fixing parts

Compatible with a selection of models including:

• KAWASAKI Z 300 ABS E4 300 (2018)
• KAWASAKI NINJA 300 E3 300 (2017)
• KAWASAKI NINJA 300 ABS E3 300 (2017)
