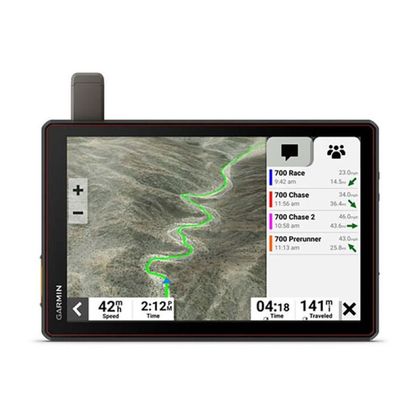

Garmin Tread XL - Chase Edition Universal GPSRef : GAR0034 / 010-02833-10

Designed for speed and performance, this rugged off-road GPS for assistance vehicles incorporates the tools you need to find your way and the communication technologies you need to stay connected, with worldwide satellite coverage. With the Tread XL Baja Chase Edition, you can locate your race vehicle and contact your team in the event of a breakdown or repair.

• Thanks to integrated inReach® technology, team tracking enables race and support vehicles to communicate and track each other in real time.
• Compatible with GPX files, this device displays the complete route of the course: start, finish, circuit line, virtual checkpoints, race pits and markers.
• Designed to withstand the elements and dust (IP67), this robust GPS is equipped with an ultra-bright 10″ touchscreen.
• Optimise your preparation with dedicated tools: annotate your roadbook and plan the most efficient route by integrating all the virtual checkpoints.
• The Tread Baja Chase Edition is supplied with a sturdy suction cup, making it easy to transfer from one assistance vehicle to another.
• Activate Assistance mode to track your racing vehicle in real time on the map.

• Physical dimensionsW x H x D: 25.2 x 19.9 x 3.1
• Weight: 930 g
• Water resistance:  IPX7
• Display type: Capacitive colour display, ultra-bright, HD, TFT with white backlight, glass
• Display format (width by height) :  W x H: 21.7 x 13.6 cm (8.5″ x 5.3″); 25.7 cm diagonal (10.1″)
• Screen definition (width by height) :  1280 x 800 pixels
• Dual orientation display:  Yes
• Magnetic support:  Magnetic locking bracket
• Type of support:  Heavy-duty suction cup holder
• 1.5" ball joint adapter with AMPS base:  Yes
• Robustness:  MIL-STD-810
• Dust resistance:  IP6X
• Battery:  Lithium-ion, rechargeable
• Battery life:  Up to 6 hours with 50% backlighting / Up to 1 hour with 100% backlighting
• Internal storage: 128 GB.
• Slot for microSD™ card (not included)
• Storage capacity: 256 max microSD™
• Wi-Fi® and Bluetooth® connection

• Turn-by-turn navigation with OpenStreetMap (OSM) for unpaved roads and footpaths.
• BirdsEye satellite images in high resolution, downloadable without subscription.
• Tread® application with Assistance mode to follow a racing vehicle in real time on the map.
• Integrated inReach® technology enabling race and assistance vehicles to exchange messages and track each other in real time.
• GPS and inReach antennas optional for optimised performance.
• Integrated sensors: GPS, Galileo, barometric altimeter, compass and 10 Hz positioning with several GNSS systems for precise off-road navigation.
• Preloaded topographic maps with 3D views of terrain and roads for Europe, Africa and the Middle East. Maps of North and South America, Australia and New Zealand already available on the device.
• Race preparation tools to create personalised itineraries, annotate your roadbook and optimise your route by passing through all the checkpoints.
• Import GPX files with full route display: start, finish, circuit line, virtual checkpoints, race pits and markers.
• Tread can be combined with a BC™ 50 compatible reversing camera with tube mount (optional).
• Access to iOverlander points of interest.
• Can be paired with the Garmin PowerSwitch™, a digital switchbox for controlling your SSV's 12V electronics directly from the display (optional).
• Map and software updates via Wi-Fi®.

The Tread:

• Follow up to 20 people in real time on the map of your phone and your Tread® device thanks to the Group Ride Mobile function.
• Create and plan your itineraries based on your vehicle's profile.
• Share your Great Rides itineraries and points of interest with other users.
• Synchronise your tracks and routes across all your devices.
• Easily import and share GPX files.
• Check the weather data in real time.

• Tread® XL - Baja Chase Edition
• Suction cup holder
• Cigarette lighter cable
• Magnetic locking bracket
• USB-C cable
• Documentation
