Wossner Forged Piston kitRef : WO00625A / 1093757001

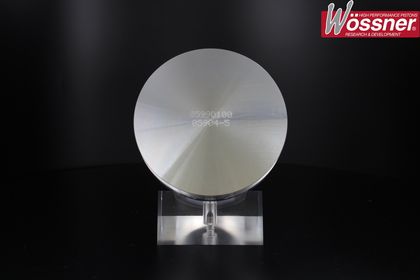

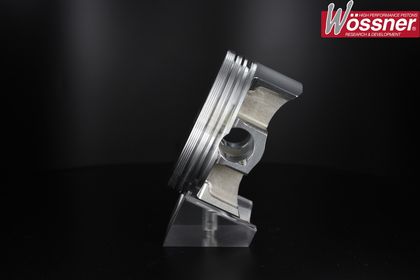

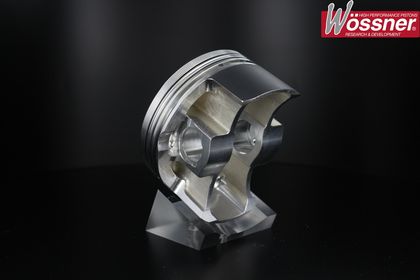

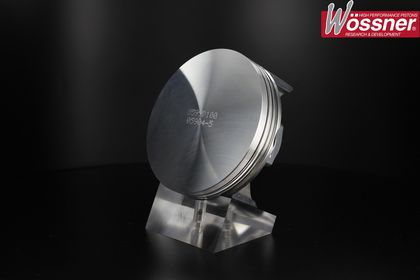

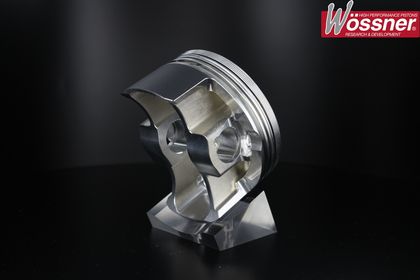

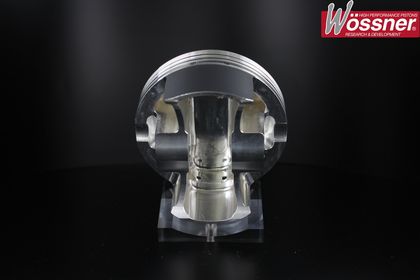

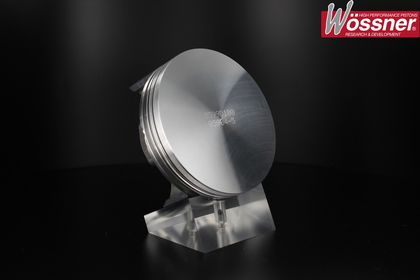

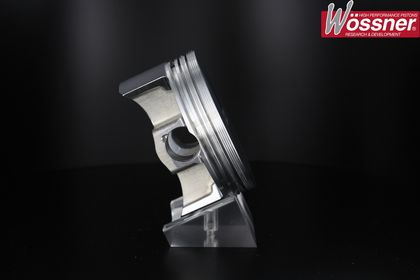

WOSSNER - Forged piston ref. 8599D050

Forged piston designed for 4-stroke quad engines, manufactured in Germany by Wössner. Machined from aluminum, this +0.50 oversized piston (letter 050) is intended for bore sizes of 86.50 mm and has a real piston diameter of Ø 86.430 mm. The skirt features an anti-friction treatment to reduce friction during the rev-up and warming phases.

• Type: forged piston
• Material: aluminum
• Bore diameter: 86.50 mm (oversize 050)
• Piston diameter: Ø 86.43 mm
• Compression: standard
• Delivered with rings, circlips, and pin
• Manufacturing: Germany

Specifically suited for quads (notably listed HONDA TRX 400 models), this piston is intended for replacement during a +0.50 re-bore. Check compatibility with your sleeve and manufacturer specifications before installation. Complete supply for installation: rings, circlips, and pin included, ideal for engine refurbishment or rebuild.

Workshop advice: follow assembly and break-in recommendations for the engine to ensure optimal performance after piston replacement.
