Wossner Forged Piston kit
Compatibility
Check that this part fits your motorcycle
Estimating delivery…
Current offer
Black Friday Preview
Sign up here to discover your promo code.
Features

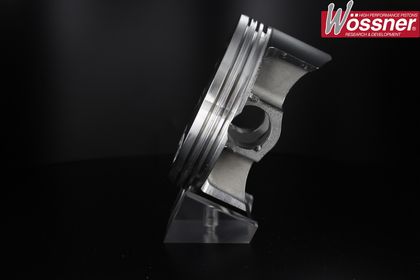

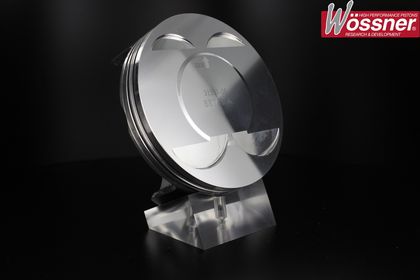

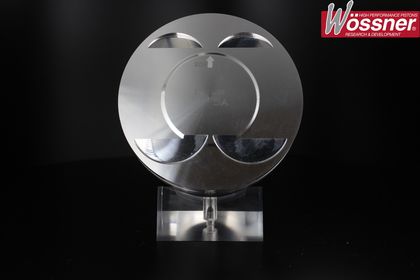

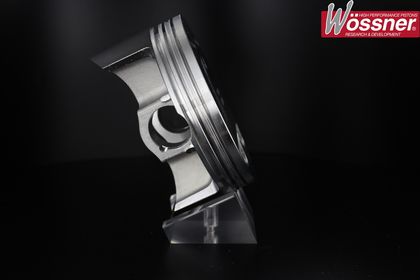

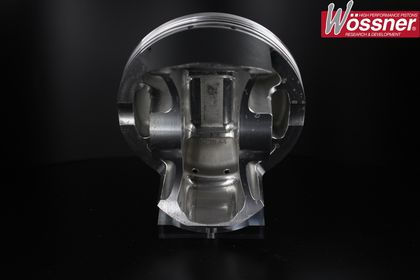

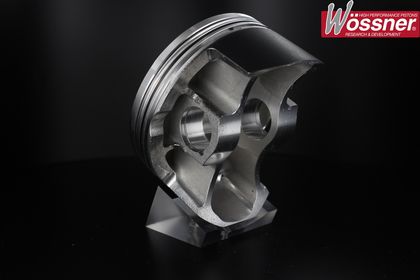

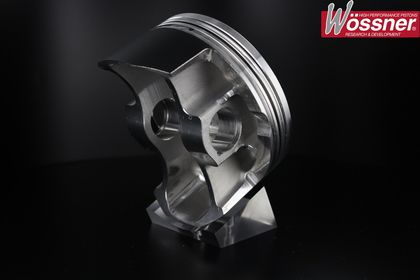

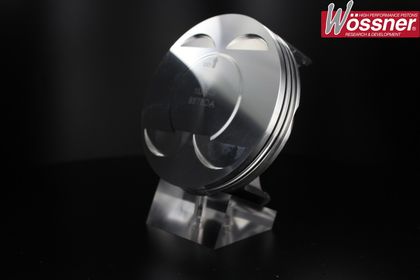

WÖSSNER Forged Piston – Manufacturer Ref: 8878DA
This Wössner forged piston, manufactured in Germany by engine part specialists, is designed for demanding quads and workshops looking for a quality original engine part. Made from aluminum, it features a treated anti-friction skirt and is delivered complete with ring(s), circlips, and pin for easy installation.
- Type: Forged piston
- Material: Aluminum
- Piston diameter: Ø 103.90 mm (bore 104.00 mm)
- Oversize letter: A
- Compression: Standard
- Delivered with: ring(s), circlips, and pin
Suitable for 2-stroke and 4-stroke engine assemblies, this piston matches the specifications indicated for a bore of 104.00 mm and carries the oversize "A". Ideal for replacements during a re-boring or engine overhaul, it fits on blocks designed for these dimensions. Before installation, check the manufacturer's recommendations, the piston/cylinder head clearance, and the condition of the combustion chamber.
Common compatibilities:
- SUZUKI LT-A 750 KINGQUAD AXI 4WD (2021)
- SUZUKI LT-A 750 KINGQUAD AXI EPS SPECIAL EDITION 4WD (2019)
- SUZUKI LT-A 750 KINGQUAD AXI EPS 4WD (2019)
| Feature | Value |
|---|---|
| Reference | WO00643A / 1093865001 |
| Bore size (mm) | 104,00 |
| Compression ratio | 11,5:1 |
| Diameter | 103,90 |
| Piston diameter | Ø 103,90 mm |
| Oversize Letter | A |
| Material | Aluminum |
| Type | Forged |
| Compression piston | Standard |
| Surcote | Standard |
6 compatible models
- SUZUKI 750 LT-A 750 KINGQUAD AXI 4WD2008 - 2021
- SUZUKI 750 LT-A 750 KINGQUAD AXI SPECIAL EDITION 4WD2008 - 2016
- SUZUKI 750 LT-A 750 KINGQUAD AXI EPS 4WD2009 - 2019
- SUZUKI 750 LT-A 750 KINGQUAD AXI EPS SPECIAL EDITION 4WD2009 - 2019
- SUZUKI 750 LT-A 750 AXI 4X4 Kingquad2022 - 2025
- SUZUKI 750 LT-A 750 AXI 4X4 Kingquad EPS2022 - 2025
