Key features
- Secure retentionThe Vertex circlip holds the Ø16 mm piston shaft in its groove to secure the piston assembly and limit its movement.
- G-shapeDesigned for Ø16 mm piston shafts, this circlip snaps into the piston groove to keep the shaft in place.
- Cross and enduroSuitable for cross and enduro engines, it supports maintenance, repair, and reassembly operations of the piston.
Ref : VER00607A / 1006136
Vertex

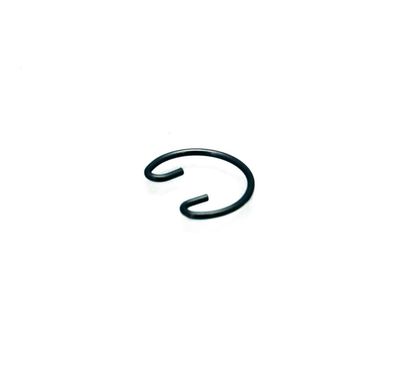

Vertex Ø16 Universal Piston pin ring
Recommended retail price: 0,56 €0,50 €
Compatibility
Universal part
This part fits many motorcycles.
Estimating delivery…
Key features
- Secure retentionThe Vertex circlip holds the Ø16 mm piston shaft in its groove to secure the piston assembly and limit its movement.
- G-shapeDesigned for Ø16 mm piston shafts, this circlip snaps into the piston groove to keep the shaft in place.
- Cross and enduroSuitable for cross and enduro engines, it supports maintenance, repair, and reassembly operations of the piston.
Features
Piston Pin Circlip Ø16 by Vertex
This G-shaped circlip secures the Ø16 mm piston pin on cross and enduro engines. It supports maintenance, repair, and reassembly of the piston.
Installation and Assembly
- The inner diameter of Ø16 mm matches piston pins of the same diameter for a proper replacement.
- The G shape keeps the piston pin in its groove to secure the piston assembly.
- Cleaning the piston groove before installation promotes correct engagement of the circlip.
- Checking for burrs on the pin limits difficulties during assembly.
- A suitable circlip pliers facilitates installation and reduces the risk of damaging the part.
- Any deformed, cracked, or loose circlip must be replaced to prevent movement of the piston pin and engine damage.
- Sold individually
- Manufacturer reference 72058
| Feature | Value |
|---|---|
| Reference | VER00607A / 1006136 |
| Use | Mx |
