P2R EXT 240mm - INT 92mm - 4 HOLES Round brake discRef : P2R04469A / 170921

ADAPTABLE YAMAHA 125-250 XMAX ROUND Brake Disc 2006+2013 REAR by P2R

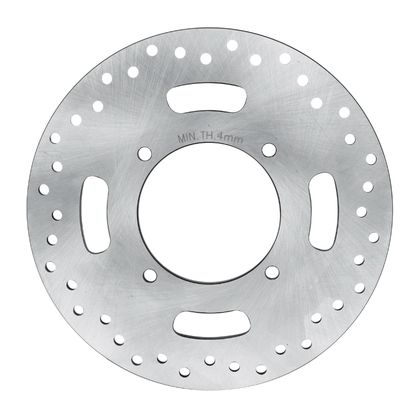

P2R rear brake disc designed for replacement on Yamaha XMAX. The outer and inner dimensions, bolt pattern, and drilling are provided to verify compatibility before installation. The specified thickness ensures the expected mechanical play is maintained during replacement.

Design and Materials

• FIXED type to ensure a stable mechanical connection with the rear hub during replacement
• Thickness of 5 mm to maintain original play and alignment upon installation

Practicality and Features

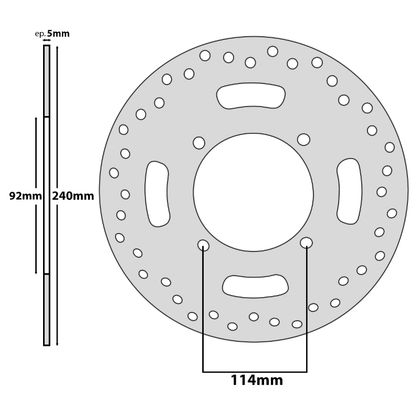

• Outer diameter of 240 mm to check compatibility with the intended braking system
• Inner diameter of 92 mm facilitating centring on the hub during installation
• Number of holes: 4 corresponding to the hub drilling for direct screwing
• Pitch between fixing holes: 114 mm to control the alignment of fixings
• Rear position indicated for specific use on the rear axle

The Advantages

• Sold individually
• A OEM Reference: 1B9-F582W-01-00

• YAMAHA X MAX 250 (2013)
