Key features
- Consistent brakingThe machined steel track promotes regular contact with the pads, limits vibrations, and supports sustained demands on the road.
- Controlled designLaser cutting, HRC 35 heat treatment, and anodised titanium grey aluminium sun holder contribute to resisting deformation and thermal expansion.
- Road and trackThis round fixed TRW disc is suitable for road use and can be used occasionally on the track. Compatible with organic, sintered, or carbon pads.
Ref : TRW00338A / 17100970
Trw
Trw 17100970 Round brake disc
Recommended retail price: 117,84 €111,90 €
Compatibility
Check that this part fits your motorcycle
Estimating delivery…
Current offer
Black Friday Preview
Sign up here to discover your promo code.
Ends on November 22, 2026
Key features
- Consistent brakingThe machined steel track promotes regular contact with the pads, limits vibrations, and supports sustained demands on the road.
- Controlled designLaser cutting, HRC 35 heat treatment, and anodised titanium grey aluminium sun holder contribute to resisting deformation and thermal expansion.
- Road and trackThis round fixed TRW disc is suitable for road use and can be used occasionally on the track. Compatible with organic, sintered, or carbon pads.
Features
Round Brake Disc 17100970 by Trw
This TRW round brake disc is designed for road use on motorcycles. Its machined steel track promotes consistent contact with the pads, while its design minimizes vibrations and supports sustained loads.
Design and Materials
- The machined steel braking surface ensures regular contact with the linings for more uniform braking.
- Laser-cut manufacturing and standard HRC 35 heat treatment enhance resistance to deformation and help reduce wear.
- The anodised titanium grey aluminium carrier provides lightweight construction and tolerance to thermal expansion during sustained use.
Installation and Mounting

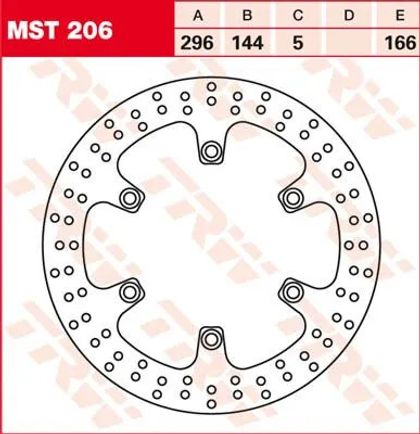

- The 6-hole drilling with a drilling circle of 166.0 mm facilitates checking compatibility with the wheel before installation.
- The outer diameter of 296 mm and inner diameter of 144.0 mm allow for verification of the necessary dimensions for replacement.
- The thickness of 5.0 mm helps ensure the disc is suitable for the specific brake assembly.
- Sold individually.
- For a dual disc setup, two units are required.
- Manufacturer reference MST206
Usage and Performance
- The machined braking surface limits vibrations and promotes consistent contact with the pads for more stable use.
- The disc geometry evenly distributes temperatures and reduces the risk of pad glazing.
- Compatibility with organic, sintered metal, or carbon-based pads allows for maintaining the appropriate lining type for the assembly.
- Suitable for road use and can be used occasionally on track to meet various riding contexts.
Examples of Compatible Motorcycles
- HONDA VT 1300 CX Fury
- CAGIVA Navigator 1000
- HONDA NT 700 V Deauville
Complete list of compatible motorcycles available in the dedicated section below
| Feature | Value |
|---|---|
| Reference | TRW00338A / 17100970 |
| Packaging | Individually |
| Thickness | 5.0 mm |
| Drilling circle | 166.0 mm |
| Inner diameter | 144.0 mm |
| Inner diameter (mm) | 144.0 |
| Outer diameter (mm) | 296 |
| Outer diameter | 296 mm |
| Thickness (mm) | 5 mm |
| Number of holes | 6 |
| Bolt model | 6 holes |
| Type | Monobloc (Fixed) |
| Disc type | Fix |
| Material | Steel |
| Shape | Round |
| Use | Road |
| Quality | High quality |
| Location | Before |
40 compatible models
- HONDA 500 CB 500 (PC26)1994 - 1995Front
- HONDA 500 CBF 500 ABS (PC39)2004 - 2007Front
- HONDA 500 CB 500 (PC32)1996 - 2003Front
- HONDA 500 CB 500 SPORT (PC32)1999Front
- HONDA 500 CBF 500 (PC39)2004 - 2006Front
- HONDA 600 CBF 600 S ABS (PC38)2004 - 2007Front
- HONDA 600 CBF 600 N ABS (PC38)2004 - 2007Front
- HONDA 600 CBF 600 S (PC38)2004 - 2007Front
- HONDA 600 CBF 600 N (PC38)2004 - 2007Front
- HONDA 650 XRV 650 Africa Twin (RD03)1988 - 1990Front
- HONDA 650 NT 650 V DEAUVILLE (RC47)1998 - 2005Front
- HONDA 700 NT 700 V DEAUVILLE ABS (RC52)2006 - 2010Front
- HONDA 700 NT 700 V DEAUVILLE (RC59)2011Front
- HONDA 700 NT 700 V DEAUVILLE ABS (RC59)2011 - 2016Front
- HONDA 700 NT 700 V DEAUVILLE (RC52)2006 - 2010Front
- HONDA 750 VT 750 CS SHADOW (RC50)2013 - 2014Front
- HONDA 750 VT 750 C SHADOW (RC50)2004 - 2009Front
- HONDA 750 VT 750 SA (RC58)2011 - 2012Front
- HONDA 750 VFR 750 F INTERCEPTOR (RC24)1988 - 1989Front
- HONDA 750 VT 750 C SHADOW2011 - 2012Front
- HONDA 750 VT 750 C BLACK WIDOW2003Front
- HONDA 750 CB 750 F2 SEVEN FIFTY (RC42)1992 - 2003Front
- HONDA 750 VFR 750 F INTERCEPTOR (RC36)1990 - 1993Front
- HONDA 750 VT 750 DC BLACK WIDOW (RC48)2001 - 2002Front
- HONDA 750 VT 750 C2 SHADOW SPIRIT (RC53)2007 - 2008, 2010 - 2013Front
- HONDA 750 VT 750 C2B Shadow Black Spirit (RC53)2010 - 2015Front
- HONDA 1000 CBR 1000 F (SC21)1987 - 1988Front
- HONDA 1000 CBR 1000 F1996 - 1999Front
- HONDA 1000 CBR 1000 F (SC24)1989 - 1995, 2000Front
- HONDA 1100 ST 1100 PAN EUROPEAN ABS (SC26)1996 - 2001Front
- HONDA 1300 VT 1300 CX FURY (SC61)2010Front
- HONDA 1300 VT 1300 CX FURY ABS (SC61)2010 - 2016Front
- HONDA 1300 VTX 1300 S (SC52)2003 - 2004, 2006 - 2007Front
- CAGIVA 500 CANYON 5001998 - 2000Front
- CAGIVA 600 CANYON 6001996 - 1997Front
- CAGIVA 750 ELEFANT 7501994 - 1996Front
- CAGIVA 900 CANYON 9001997Front
- CAGIVA 900 ELEFANT 900 IE1991 - 1992Front
- CAGIVA 900 GRAN CANYON 9001998 - 1999Front
- CAGIVA 1000 1000 NAVIGATOR2000 - 2005Front
