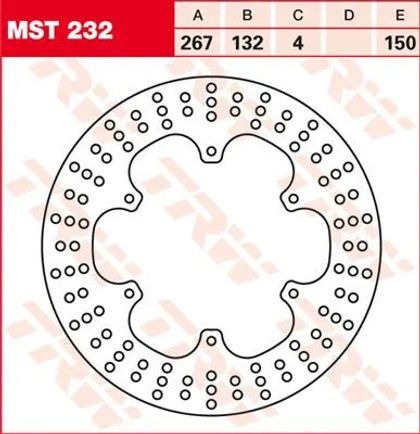

TRW MST232 — Street brake disc designed for trails and enduro. High-quality floating steel disc with a titanium grey anodised aluminium inner ring, suitable for road and track use. Built to provide a consistent braking feel and limit vibrations thanks to a carefully finished friction surface.
- Manufacturer: TRW — Reference MST232
- Type: Floating brake disc, sold individually (order two for double disc mounting)
- Pad compatibility: Suitable for organic, sintered metal, and carbon-based pads
- Construction: Hardened steel outer ring (HRC 35), precision laser cut, heat treatment; anodised aluminium inner ring
The design of the surface and the profile of the disc promote even temperature distribution to reduce the risk of glazing and limit pad wear. Designed to maintain a stable pressure point and good braking modulation, it is particularly aimed at Yamaha XT 600 (3TB/3UW, 3AJ, 2KF/2NF) and equivalent models.

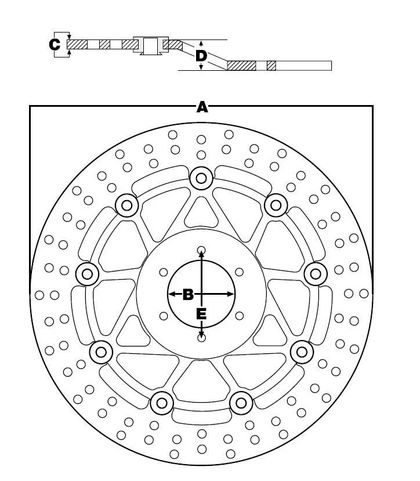

- Drilling circle: 150.0 mm
- Outer diameter: 267 mm
- Inner diameter: 132.0 mm
- Thickness: 4.0 mm
- Shape: Round — Material: Steel
A robust and precise choice for those looking to replace their disc on trail/adventure or engage in spirited riding without compromising mechanical grip.
