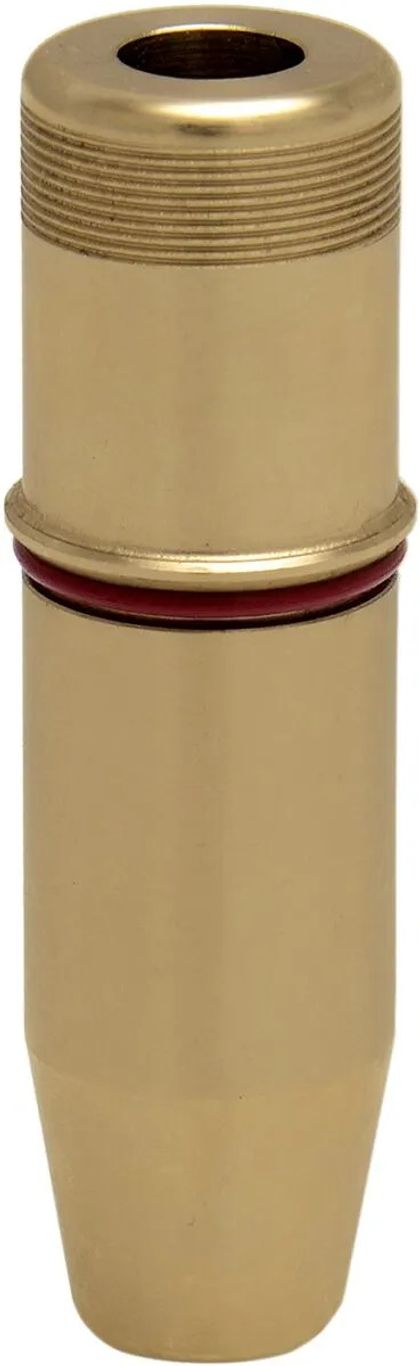

Kibble White Guide Valve guideRef : KIBW00223A / 09262293

KIBBLEWHITE valve guide designed for intake cylinder heads: the ideal part for mechanics and riders who maintain their V-Twin. Machined from manganese bronze, this guide offers a compromise of durability and machinability — easily reamed with a drill (corded or cordless) and finished with a ball hone for a clean and concentric seat. Tapered nose for maximum contact area while limiting obstruction of the passages.

• Application: intake
• Material: manganese bronze
• Outer diameter: 0.5635" (≈ 14.31 mm)
• Inner diameter: 0.2760" (≈ 7.01 mm)
• Compatibility: compatible with OEM valve stem seals and OEM lower cup
• Camshaft lift: compatible up to 0.600" lift
• Origin: made in the USA

Note: not compatible with RH Sportster. Supplied under manufacturer reference 20-20691M, this guide is aimed at the Vintage/Classic, Touring, and Roadster universes — particularly mountable on many Dyna models (e.g. FXDWG, FXDL, FXDF 2017 1690 cc depending on application). Ideal for restoring valve seats and fine-tuning camshaft lift in your workshop.
