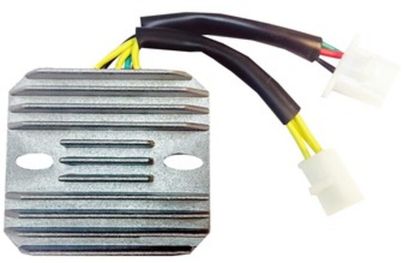

Tecnium by DZE Voltage regulatorRef : TE20311A / 1148796

TECNIUM by DZE Regulator – Manufacturer Ref: 2497

The TECNIUM by DZE regulator is a rectifier unit designed for the urban environment and roadsters. It converts the three-phase current from the alternator into 12 V direct current, featuring MOSFET technology for precise regulation. Suitable for scooters and small displacement bikes, it can be installed as a replacement for many manufacturer references.

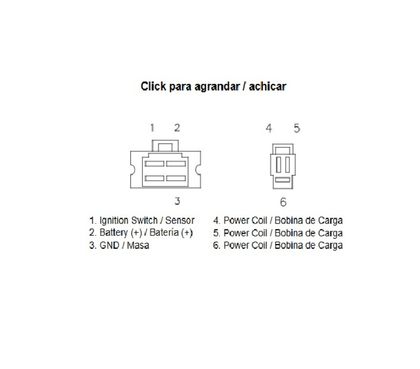

• Electrical characteristics: Voltage 12 V, Nominal current 25 A, Three-phase input, DC output.
• Technology: MOSFET — modern design for charge management.
• Dimensions and mounting: Length 80 mm × Width 70 mm × Height 28 mm, hole spacing 60 mm.
• Functions: With sensor (compatible with original systems).
• Compatible original references: 31600-M56-100, SH535A-12, 495186, 02601800, 31600-KAM1-009, 31600-KAS-901, etc.

Common applications: compatible with many models from Honda, Kymco, Sym, Piaggio, Malaguti, and others (e.g., CMX/CH/CN 250, Dink/People/Xciting, Joy Ride, GTX/Hexagon). Ideal for replacing a faulty regulator and restoring stable power to 12 V circuits (lighting, battery charging, onboard electronics).

Note: Check electrical and mechanical compatibility with your model before installation (OEM references provided in the product sheet).
