Trw EC Series Wave brake discRef : TRW00361A / 17111028
- Description
- Compatible motorbikes
- Questions and answers
DescriptionTrw EC Series Wave brake disc
'%3e%3cpath%20fill='%23f1ab00'%20d='M.702%207.162l1.875%201.684%206.161-5.532L14.9%208.846l1.875-1.684L8.738-.053z'/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
Product details :
Features
TRW EC Series Brake Disc (ref. MST311EC)
Designed for off-road and demanding terrains, the TRW EC Series disc combines robustness and control. Machined from hardened steel alloy, it offers increased longevity and a uniform friction surface, suitable for off-road pads. Its silver contour design ensures a neat appearance and controlled heat dissipation during trail, enduro, cross, or supermoto sessions.
- Compatibility: designed for off-road use; possible combination with all off-road pad alloys.
- Material: hardened steel alloy for controlled wear.
- Finish: silver colour, high-quality surface treatment.
- Applications: Trail / Adventure, Enduro, Cross, Supermoto.

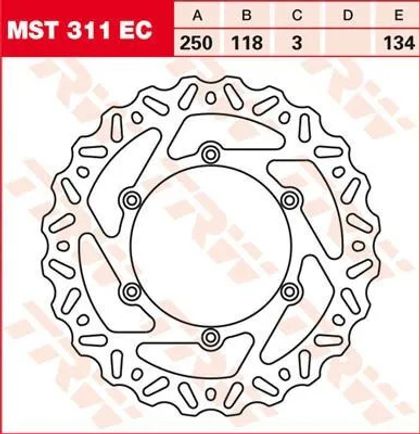

Technical specifications:
- Drilling circle: 134.0 mm
- Outer diameter: 250 mm
- Inner diameter: 118 mm
- Thickness: 3.0 mm
- Shape: contour
Manufacturer reference: MST311EC — a reliable choice to replace a worn disc and regain precise and uniform brake feel on your off-road outings. Compatible with many models, including YAMAHA YZ 125 and SUZUKI RM 250 depending on application.
Technical information :
Reference
TRW00361A / 17111028
Outside diameter
250 mm (9-7/8")
Style
Solid Mounting
Type
Monobloc (Fixed)
Braking surface
Perforated
Units
Per unit
Shape
Outline
Colour/Finish
Silver
Inside diameter
118 mm (4-41/64")
Bolt model
6 holes
Material
Steel
Thickness
3.0 mm
Model
EC Series
Drilling circle
134.0 mm
Product name
Brake disc
Compatible motorbikes
YAMAHA49 compatible models
YZ 125 (CE08) - 2001/2001FrontYZ 125 - 2024/2026FrontYZ 125 (CE09) - 2002/2002FrontYZ 125 (CE10) - 2003/2003FrontYZ 125 (CE15) - 2005/2005FrontYZ 125 (CE16) - 2006/2015 - 2018/2023FrontYZ 125 (CE13) - 2004/2004FrontWR 250 R (DG20) - 2008/2015FrontWR 250 F (CG24) - 2006/2006FrontYZ 250 F (CG27) - 2007/2009FrontWR 250 F (CG26) - 2007/2007FrontWR 250 F (CG30) - 2008/2014FrontYZ 250 F (CG34) - 2014/2015FrontWR 250 X (DG20) - 2008/2015FrontYZ 250 F (CG33) - 2010/2013FrontYZ 250 (CG08) - 2001/2001FrontYZ 250 (CG12) - 2002/2002FrontWR 250 F (CG36) - 2015/2015FrontWR 250 F (RE25) - 2016/2017 - 2019/2019FrontWR 250 F - 2020/2021FrontYZ 250 - 2024/2024FrontYZ 250 (CG23) - 2006/2015 - 2022/2023FrontYZ 250 F (CG25) - 2006/2006FrontWR 250 F ENDURO GP (RE25) - 2018/2018FrontYZ 250 F (CG14) - 2003/2003FrontWR 250 F (CG16) - 2003/2004FrontYZ 250 F (CG10) - 2001/2002FrontYZ 250 F (CG21) - 2005/2005FrontWR 250 F (CG11) - 2001/2002FrontYZ 250 (CG20) - 2005/2005FrontWR 250 F (CG22) - 2005/2005FrontYZ 250 (CG17) - 2004/2004FrontYZ 250 F (CG18) - 2004/2004FrontYZ 250 (CG13) - 2003/2003FrontWR 400 F (CH04) - 2001/2002FrontYZ 426 F (CJ01) - 2001/2002FrontWR 426 F (CJ02) - 2001/2002FrontYZ 450 F (CJ03) - 2003/2003FrontWR 450 F (CJ07) - 2005/2005FrontYZ 450 F (CJ18) - 2014/2015FrontWR 450 F (DJ03) - 2012/2015FrontWR 450 F (CJ04) - 2003/2004FrontWR 450 F (CJ13) - 2008/2011FrontYZ 450 F (CJ05) - 2004/2004FrontWR 450 F (CJ12) - 2007/2007FrontWR 450 F (CJ09) - 2006/2006FrontYZ 450 F (CJ10) - 2006/2009FrontYZ 450 F (CJ06) - 2005/2005FrontYZ 450 F (CJ15) - 2010/2013Front
SUZUKI7 compatible models
RM 125 - 1988/2012FrontDR 125 SM - 2008/2012FrontRM 250 - 1988/2012FrontDR-Z 400 S - 2005/2006FrontDR-Z 400 - 2000/2004FrontDR-Z 400 SM - 2005/2006FrontDR-Z 400 E - 2000/2005Front
