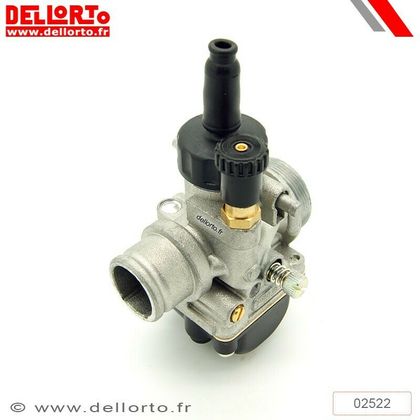

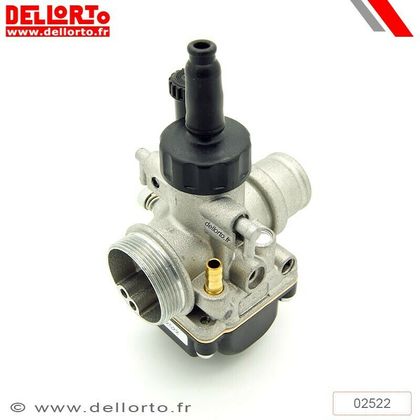

PHBG BS Carburettor Ø19mm by Dell Orto

Carburettor for mopeds and gearboxes designed for engines around 70cc, featuring a 19mm venturi for optimal air flow. Intended for installations with a flexible intake manifold, it includes a direct starter and a standard bellmouth thread for simplified mounting in urban environments.

Design and Materials

• 19 mm venturi for suitable air flow for mopeds and gearboxes close to 70cc
• Engine side diameter of 25 mm for a coherent connection with the intake manifold

Practicality and Features

• Bellmouth thread M32x1.25 for mounting a compatible threaded bellmouth
• Direct starter to immediately enrich the mixture during cold starts

Fit and Cut

• Designed for flexible intake manifolds, suitable for installations without rigid connectors
• Without a separate lubrication connector, the carburettor does not have a port for independent oil supply

Advantages

• Road Type, suitable for public road use
• Urban Environment, designed for city commuting
• OEM Reference 02522

Examples of Compatible Motorcycles

• MBK 51 PHENIX 50 cm3 (2005)
• HONDA CAMINO 50 cm3 (1991)
• MBK 51 KANSAS 50 cm3 (2005)

Complete list of compatible motorcycles available in the dedicated section below
