Denali CANsmart™ Kit D3 Headlight LightsRef : DENA00261A / 3064538

DENALI CANsmartâ„¢ Kit D3 consisting of:

• DENALI CANsmartâ„¢ Controller GEN II (1x)
• DENALI D3 TriOptic LED Additionnal Lighting - By Unit (2x)

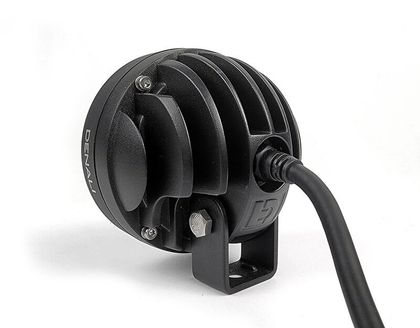

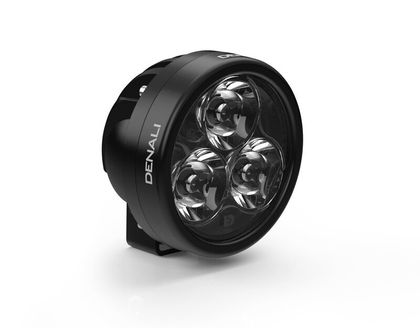

Our new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market. Our D3 driving light features our signature TriOpticâ„¢ beam system that includes a spot and hybrid driving lens with each light pod. Unlike previous TriOpticâ„¢ lights, the D3 hybrid driving beam is ECE and SAE compliant to deliver an impressive street-legal high beam in North America and European Union countries. But what if you're not concerned with street-legal precision and just want off-road outrageous? We got you covered too! The D3 spot lens was engineered for maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitor's lights that are twice it's size.

Our D3 is also available in an SAE & ECE certified fog beam for drivers seeking a true street-legal fog beam that is super wide and features a crisp horizontal "cut-off".

Features

• TriOpticâ„¢ Lens System (includes spot and hybrid lenses with each pod)
• Best in class street-legal spot and hybrid beams (SAE/DOT & ECE certified)
• High-Intensity Series Cree LEDs outputting 2100 lumens per pod
• DataDimâ„¢ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
• DrySealâ„¢ Submersible Waterproof light can withstand the most extreme environments
• Impact PCâ„¢ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
• LiveActiveâ„¢ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included
• Additional SAE/DOT & ECE certified hybrid driving lens included (spot lens installed)
• Amber & Selective Yellow lenses available (sold separately)

Beam Performance (pair)

• Spot Beam
• Beam Distance (at 1 lux): 1910 feet (582 meters)
• Beam Width (at 1 lux): 100 feet (30 meters)

Combo Beam (1 spot, 1 hybrid)

• Beam Distance (at 1 lux): 1520 feet (463 meters)
• Beam Width (at 1 lux): 175 feet (53 meters)

Hybrid Beam

• Beam Distance (at 1 lux): 1050 feet (320 meters)
• Beam Width (at 1 lux): 225 feet (69 meters)

Specs (single pod)

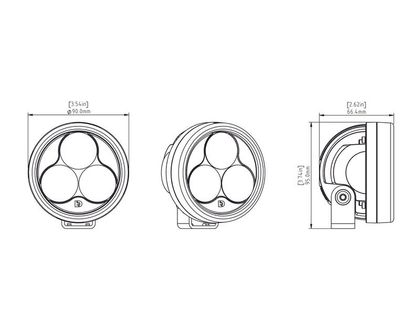

• Pod Size: 3.5" (90mm) Round x 2.62" (66mm) Deep
• LED: (3x) 11 Watt Cree XP-P LEDs
• Power Draw: 36 Watts (3 Amps)
• Lumens: 2100
• DataDimâ„¢ Compatible: Yes
• Operating Voltage: 9-32V DC
• IP67 Waterproof & Submersible
• Hybrid Lens Certifications: SAE/DOT J581 & ECE R112
• Spot Lens Certifications: ECE R112

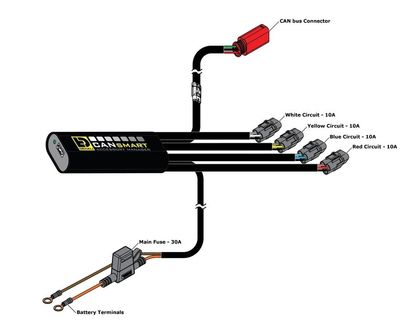

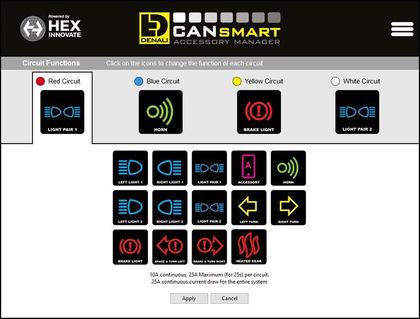

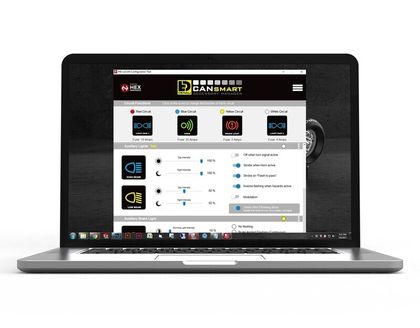

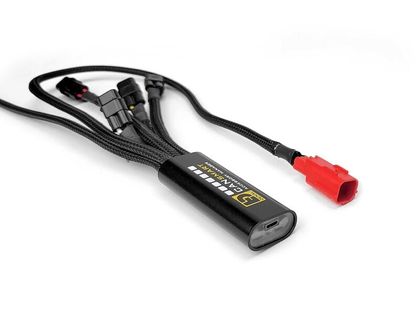

The ground-breaking Harley-Davidson CANbus controller provides plug & play connection and intelligent control of aftermarket and genuine Harley-Davidson accessories right from your bikes original switches or DENALI Accessory Manager Software. Simply connect the CANsmartâ„¢ Controller to your Harley-Davidson diagnostic port to access over 35 programmable accessory settings that provide intelligent control of auxiliary lights, horns, brake lights, or any other accessory you can imagine. The four accessory circuits are electronically fused and can provide up to 25 peak amps (10 amps continuous).

Features

• High/Low Sync - Set passing lamps and auxiliary lights to switch between a programmable high/low setting with the factory high beam switch.

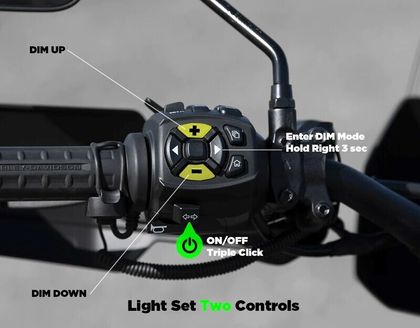

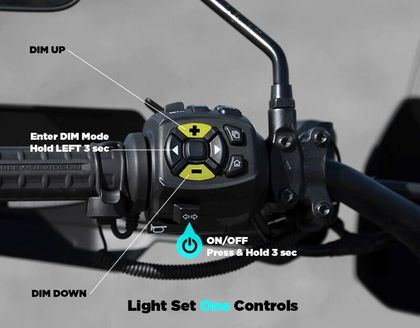

• ON/OFF and Dim - Independently control two sets of lights ON/OFF and change intensity level (for both day and night) right from your bikes factory trip switch. Click three times to turn lights on/off, or hold for 3 seconds to enter dimming mode where you can cycle between 10% - 100% intensity.
• Modulate Lights - Set passing lamps or auxiliary lights to modulate to increase your visibility to other motorists.
• Flash to Pass - Need to get someone's attention? Pulse your high beam switch three times and your auxiliary lights will strobe three times fast.
• Cancel With Turn Signal - This feature cancels the corresponding auxiliary light when you turn your turn signal on preventing powerful auxiliary lights from overpowering your signal.
• Flash With Turn Signal - This features flashes the corresponding auxiliary light when you turn your turn signal on, enabling auxiliary lights to function as turn signals.
• Plug & Play Horn Installation - Quickly and easily connect high power aftermarket horns like our SoundBombâ„¢ without having to add an additional harness or relay.
• Strobe with Horn - With this feature selected the CANsmartâ„¢ software will automatically strobe your passing lamps or auxiliary lights when you sound your horn. This feature works whether you have the factory horn or SoundBombâ„¢ horn installed.
• Deceleration Activated "Smart Brake" Technology - The CANsmartâ„¢ reads vehicle speed in real time to activate your auxiliary brake light during deceleration before you even touch the brake. You can adjust the sensitivity and minimum speed at which the Smart Brake Feature will activate.
• Flash Pattern Braking - The CANsmartâ„¢ provides four different flash patterns that make our super bright auxiliary brake lights even noticeable to motorists behind you. You can set auxiliary brake lights to only flash under hard braking, flash continuously as your brake is applied or flash four times rapidly then hold steady (California legal flash rate).
• Switched Power Source - The CANsmartâ„¢ provides a universal "accessory" option which simply gives you clean switched 12V power. That means whatever accessory you connect to this circuit will turn on and off with your ignition.
• Delay Time Out - You can also set the accessories on this circuit to have a delayed time out. This will keep them powered for up to 30 seconds after your turn off your bike.
• On Board Power - The "accessory" circuit option is ideal for powering your GPS, phone, heated gear or any other electronic device.

What’s In The Box?

• CANsmartâ„¢ Controller
• (x2) 5.5ft Light Extension Cables
• 5ft SoundBomb Horn Extension Cable
• B6 Brake Light Wiring Adapter
• Zip-ties
• Adhesive Hook-and-Loop Fastener
• Micro USB Programming Cable
