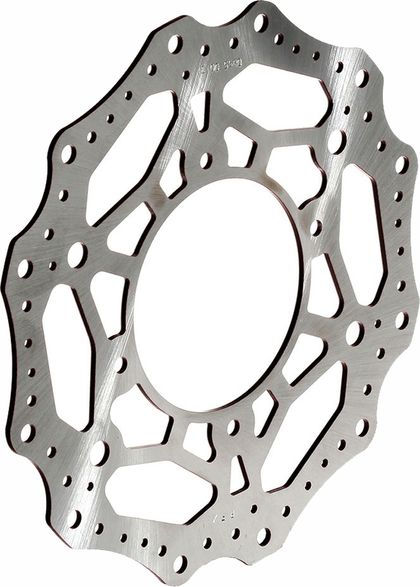

RFX Race Fixed Wave brake discRef : RFX01433A / 1128449

Designed for motocross competition and demanding riders, the RFX Race fixed petal brake disc combines strength and precision. Laser-cut from high-quality stainless steel and heat-treated, it resists wear while limiting corrosion thanks to a Comaxit finish on the non-loaded surfaces. The surface is ground with a precision of 0.01 mm to ensure an immediate and stable braking feel from the very first kilometers.

The petal profile, developed by CAD, reduces unsprung weight and facilitates the evacuation of debris and heat. The 6.5 mm holes and wavy design effectively clean the pads and contribute to uniform thermal dissipation during intense sessions on hilly or muddy terrain.

Technical specifications:

• Manufacturer reference: FXBD1010055BK
• Brand: RFX
• Designation: RFX Race fixed petal brake disc
• Color: Black
• Outer diameter: 220 mm
• Inner diameter: 88 mm (Ø Int/Ext: 88/220 mm)
• Hole diameter: 6.5 mm
• Thickness: 3 mm
• Application: Cross

Common compatibilities:

• Honda CRF 150 R (2026)
• Honda CRF 150 R Big Wheels 16/19 (KE03) (2022)
• Honda CRF 150 R Std Wheels 14/17 (KE03) (2020)

A reliable choice to replace an OEM disc while maintaining road behavior suited to off-road conditions.
