Key features
- Consistent brakingThe RFX Race front disc promotes quick engagement and regular contact of the pads, to support the demands of motocross and off-road riding.
- Treated steelLaser-cut stainless steel, surface ground to 0.01 mm, and heat treatment promote controlled wear of the pads.
- Front mountingThis 250 mm fixed disc mounts on a 4-hole support of 6.5 mm. Check dimensions 250 x 100 x 3 mm, particularly for KX 500, KX 250 and KX 125.
Ref : RFX01446A / 1128462
RFX

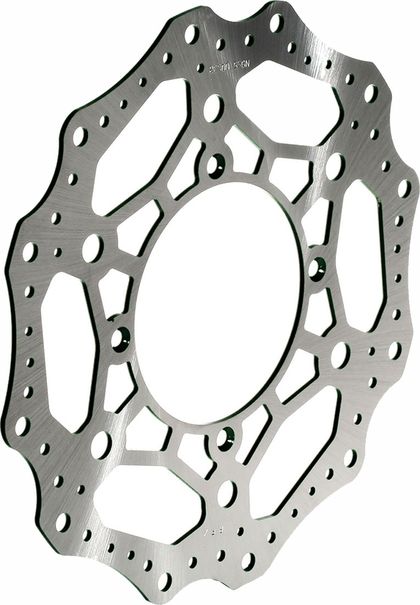

RFX Race Fixed Wave brake disc
Recommended retail price: 82,99 €78,80 €
Compatibility
Check that this part fits your motorcycle
Estimating delivery…
Current offer
Black Friday Preview
Sign up here to discover your promo code.
Ends on November 22, 2026
Key features
- Consistent brakingThe RFX Race front disc promotes quick engagement and regular contact of the pads, to support the demands of motocross and off-road riding.
- Treated steelLaser-cut stainless steel, surface ground to 0.01 mm, and heat treatment promote controlled wear of the pads.
- Front mountingThis 250 mm fixed disc mounts on a 4-hole support of 6.5 mm. Check dimensions 250 x 100 x 3 mm, particularly for KX 500, KX 250 and KX 125.
Features
Fixed Petal Wave Race Brake Disc by RFX
The RFX Race fixed petal front brake disc is designed for off-road motorcycles and the demands of motocross. Its laser-cut stainless steel construction, ground surface, and heat treatment ensure consistent braking and controlled wear of the brake pads.
Design and Materials
- The laser-cut stainless steel construction provides a design suited to the challenges of off-road use.
- The heat treatment limits pad wear to preserve their lifespan.
- The Comaxit coating on the unworn surfaces reduces corrosion and maintains the black finish of the disc.
Installation and Mounting
- The fixed disc mounts at the front on a bracket corresponding to its 4-hole pattern.
- The 6.5 mm holes facilitate the evacuation of gases and mud during off-road use.
- The dimensions of 250 mm outer diameter, 100 mm inner diameter, and 3 mm thickness allow for compatibility checks with the disc being replaced.
- Sold individually
- Manufacturer reference FXBD2030055BK
Usage and Performance
- The ground surface with a tolerance of 0.01 mm promotes quick brake engagement.
- The wavy petal profile aids in cleaning the pads to maintain more consistent contact.
- The petal shape enhances thermal dissipation during prolonged braking efforts.
- The optimised CAD profile reduces unsprung weight to enhance the motorcycle's responsiveness.
Examples of Compatible Motorcycles
- KAWASAKI KX 500 (2003)
- KAWASAKI KX 250 (2002)
- KAWASAKI KX 125 (2002)
Complete list of compatible motorcycles available in the dedicated section below
| Feature | Value |
|---|---|
| Reference | RFX01446A / 1128462 |
| Packaging | Individually |
| Diameter | 100/250 |
| Hole diameter (mm) | 6.5 |
| Inner diameter (mm) | 100 |
| Outer diameter (mm) | 250 |
| Thickness | 3 |
| Thickness (mm) | 3 mm |
| Number of holes | 4 |
| Color | Black |
| Type | Fixed |
| Brake disc shape | Petal |
| Use | All Terrain |
| Location | Before |
13 compatible models
- KAWASAKI 125 KX 125 (KX125G)1989
- KAWASAKI 125 KX 125 (KX125H)1990 - 1991
- KAWASAKI 125 KX 125 (KX125J)1992 - 1993
- KAWASAKI 125 KX 125 (KX125K)1994 - 1998
- KAWASAKI 125 KX 125 (KX125L)1999 - 2002
- KAWASAKI 250 KX 250 (KX250E)1987
- KAWASAKI 250 KX 250 (KX250F)1988
- KAWASAKI 250 KX 250 (KX250G)1989
- KAWASAKI 250 KX 250 (KX250H)1990 - 1991
- KAWASAKI 250 KX 250 (KX250J)1992 - 1993
- KAWASAKI 250 KX 250 (KX250K)1994 - 1998
- KAWASAKI 250 KX 250 (KX250L)1999 - 2002
- KAWASAKI 500 KX 500 (KX500E)1995 - 2004Front
